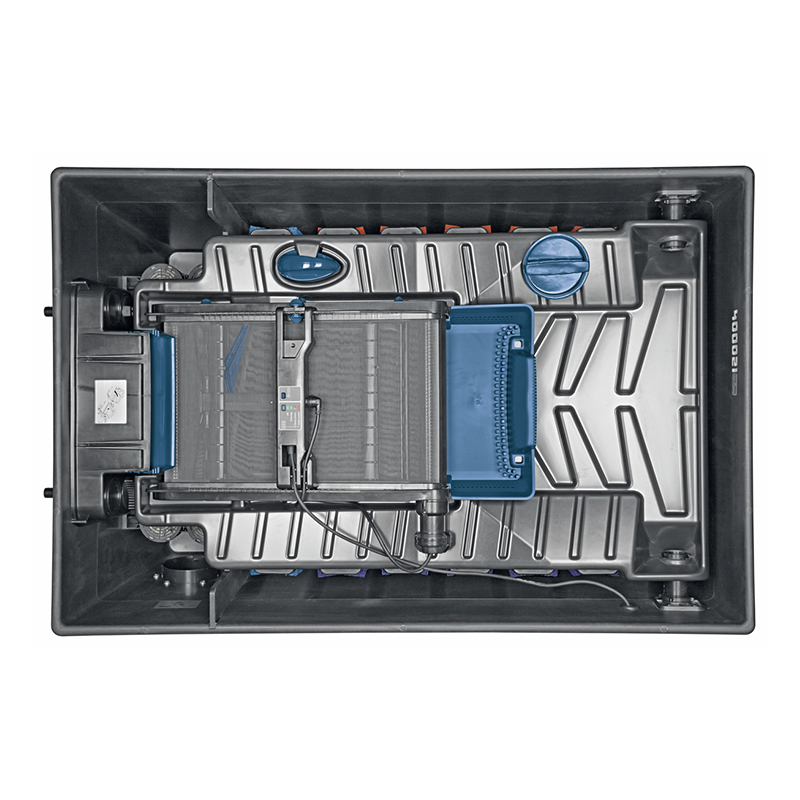

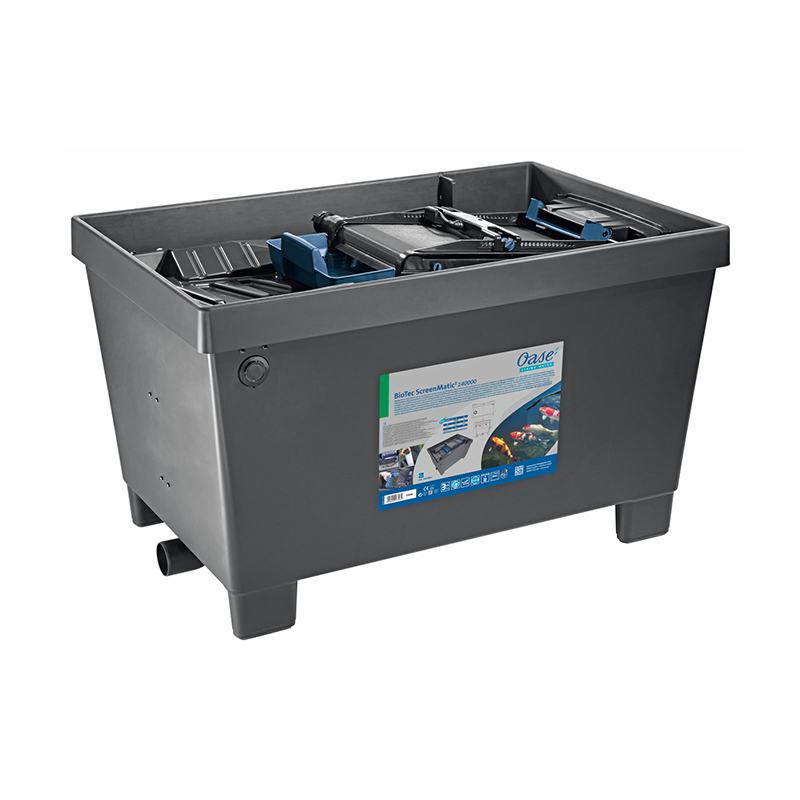

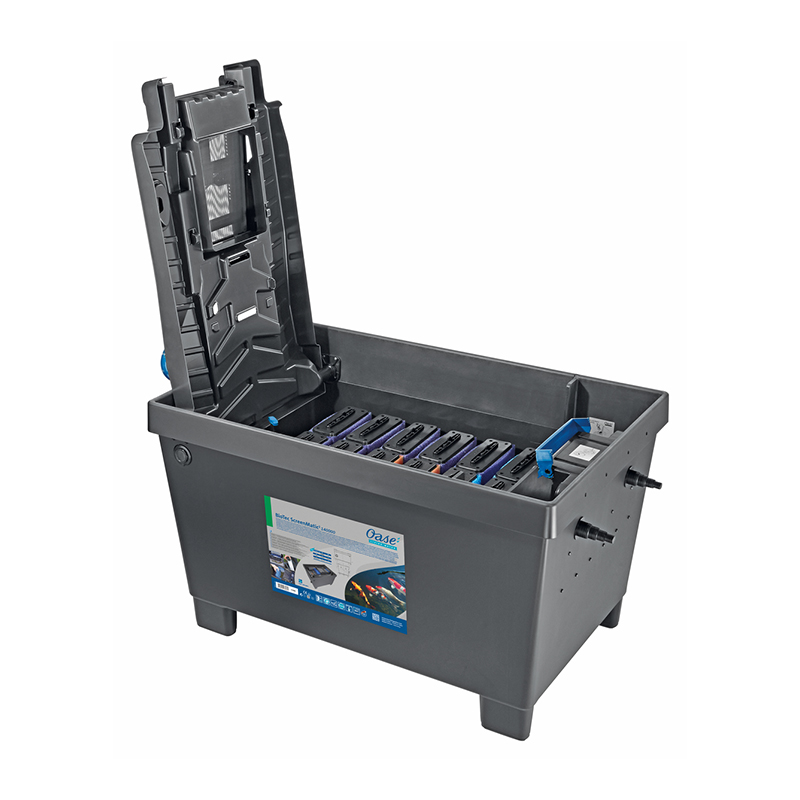

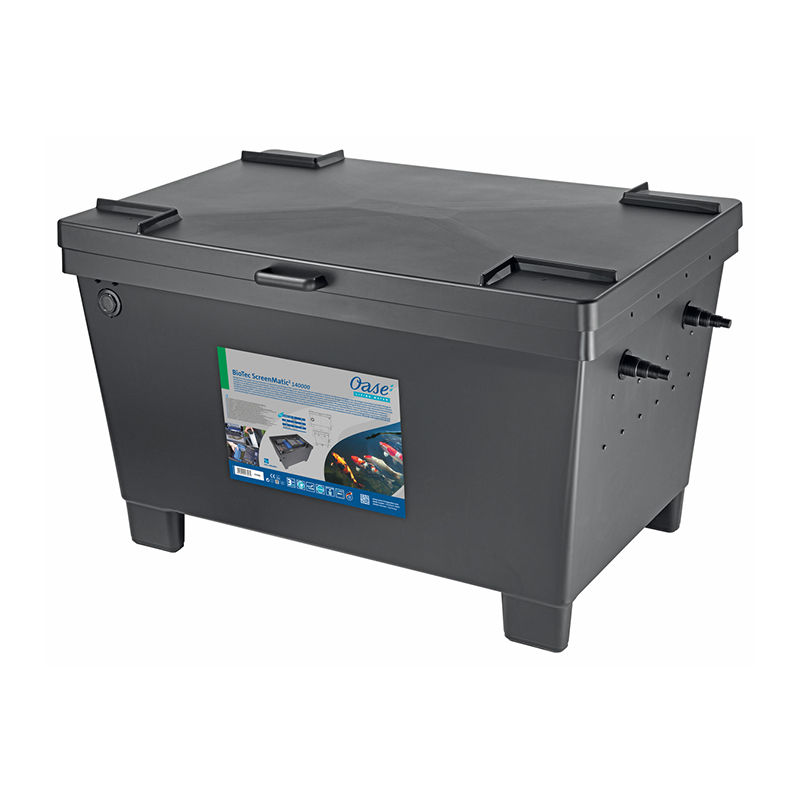

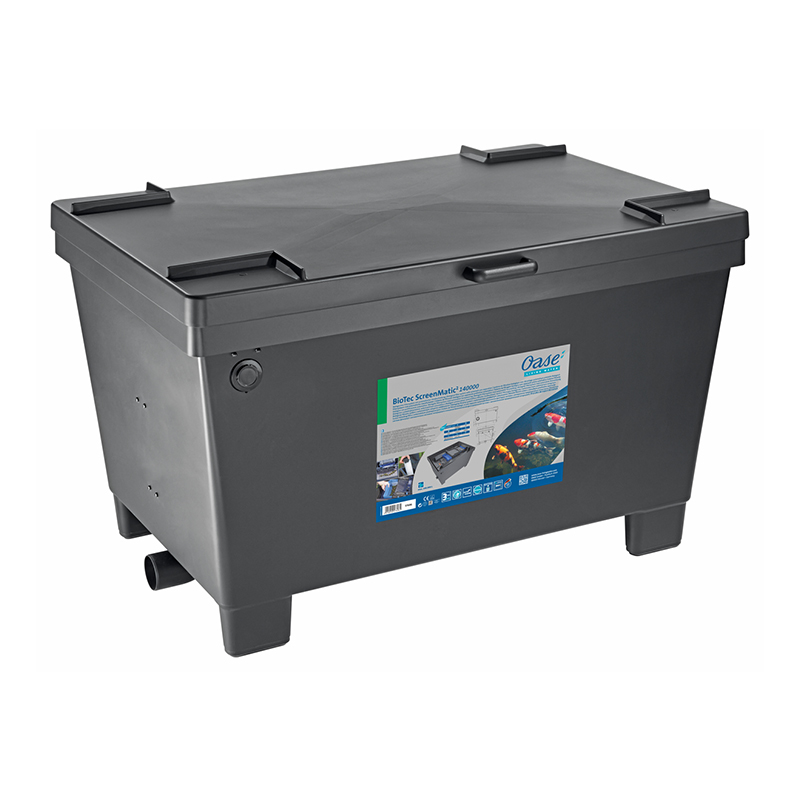

OASE BioTec ScreenMatic² 140000 [INT]

Original price was: $6,924.25.Current price is: $6,294.75.

Key Features

  • Clear and healthy pond water with minimum maintenance requirements
  • Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
  • Continuous belt filter at an affordable price

Characteristic

  • Incl. OASE Clear Water Guarantee
  • Significantly less maintenance is required, thanks to coarse debris extraction
  • More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
  • Cleaning of filter sponges directly in the filter, without removal
  • Sludge drain with slide valve for removing debris from the filter system
  • Different filter media for optimal development of filter bacteria
  • Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
  • Optimally matched to OASE AquaMax Eco filter pumps
  • Direct connection possibility for Bitron C and Eco UVC clarifiers
  • Reinforced strap material for an extended service life
  • Double-sealed motor for an extended service life
  • Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
  • Sludge basket with greater volume and simplified handling
  • Rubberised separating lip for outstanding separation result
  • Free brush for occasional cleaning of the belt filter
  • Manual belt run now possible via button
  • Highly effective flow-through filter for ponds up to 140.0 m³
SKU: AQ-03OG006 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 1200 x 800 x 760
Rated voltage (primary, secondary) 230 V / 50 Hz, 12 V / AC
Power consumption W 5
Cable length 12 V device (with power unit) m 2.10 (Power unit) + 5.00
Net weight kg 105.00
Guarantee (+ request guarantee) Years 2 + 1

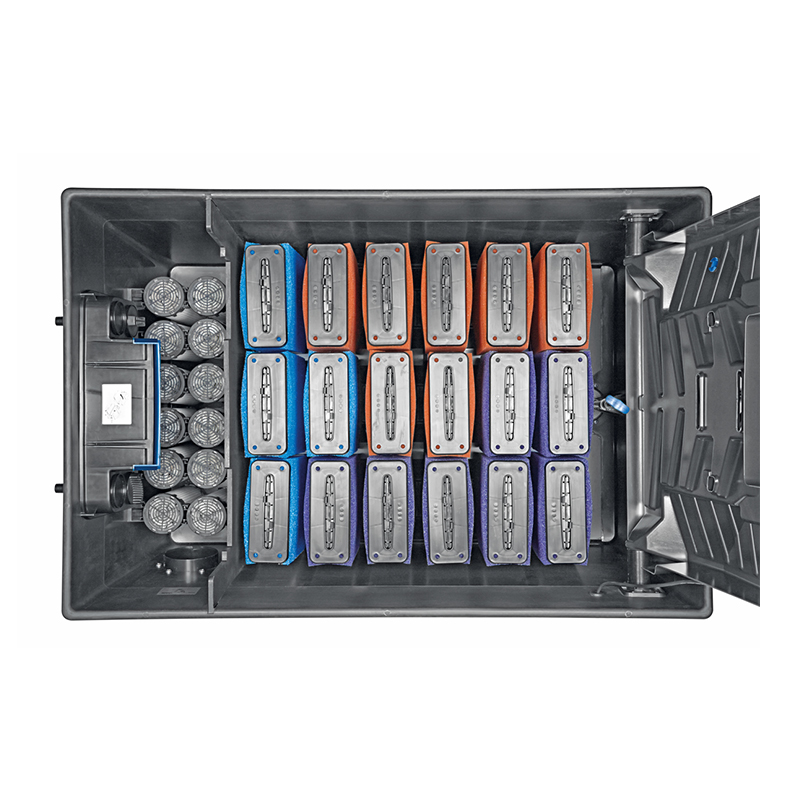

Number of filter foams, total Units 18
Number of blue filter foams Units 4
Number of red filter foams Units 7
Number of purple filter foams Units 7
Special filter granulate kg 14.50
Temperature display No
Coarse debris extraction µm 300
Inlet connections mm 25 / 32 / 38 / 50
Inlet connections 1″, 1 ¼”, 1 ½”, 2″
Outlet connections DN 110
Sludge discharge connections DN 75
Min. flow rate l/h 8000
Max. flow rate l/h 17500
Suitable for ponds up to max. 140.0
Suitable for ponds with fish stock 70.0
Suitable for ponds with koi 35.0
Connection to Bitron C 36 – 110 W, Bitron Eco 120 – 240 W
Pos. Product SKU Quantity
1 ASM cover ScreenMatic 140000 73381 1
2 ASM handle BioTec 36 34868 1
3 Screen holder BioTec ScreenMatic 140000 42345 1
4 Brush BioTec ScreenMatic 42449 1
5 Spare clip BioTec 36 34864 1
6 Substrate pipe cpl. BioTec 18 / 36 25507 1
7 Spare case BioTec ScreenMatic² 140000 43686 1
8 Spare screen holder fixation 2015 44181 1
9 Spare wedge plate 44336 1
10 Cleaner BioTec 34734 1
11 Mud basket BioTec ScreenMatic 42346 1
12 Transformer 6 VA 2m H05RN-F 2 x 0.75 mm² 15118 1
13 Plug BioTec ScreenMatic 140000 44173 1
14 ASM BioTec ScreenMatic 140000 42384 1
15 Spare small parts BioTec ScreenM. 2015 44178 1
16 Spare ASM controller ScreenMatic 140000 44186 1
17 Woven fabric BioTec ScreenMatic 140000 42326 1
18 ASM scraper with brush ScreenMatic 2015 44177 1
19 Spare traction unit BioTec ScreenMatic² 44183 1
20 Add. pack ScreenMatic² 2017 48674 1
21 Step. grommet 1 1/2″+thread closed 2018 43749 1
22 Flat gasket NBR 60 x 47 x 3 SH40 19506 1
23 ASM distributor ScreenMatic 140000 44338 1
24 O-Ring NBR 54 x 4 SH40 25691 1
25 Inlet locking nut BioTec ScreenMatic 42949 1
26 Spare gasket seal distributor 44179 1
27 Oval head screw CH-V2A DIN 7981 4.8 x 22 25000 8
28 Foam pad cover BioTec 34670 8
29 Replacement set foam blue BioTec 60/140 42896 1
30 Foam holder BioTec 18 / 36 34733 8
31 Gasket foam holder BioTec 36 25542 1
32 Clip foam holder BioTec 36 25922 1
33 Rivet skiffi BioTec 36 25546 1
34 Sealing BioTec 36 128 x 47 SH40 25547 1
35 Foam holder locking clip BioTec 45325 2
36 Repl. set foam red/purple BioTec 60/140 42894 3
37 ASM connection set DN 110 19005 1
38 Spare part plug BioTec 36 35255 1
39 Screw CH-V2A DIN 7983 6.3 x 25 24229 1
40 Flat gasket bottom drain BioTec 36 24230 1
41 Drain bend 34253 1
42 Distance part BioTec 36 25996 1
43 Outlet guide BioTec 36 34835 1
44 ASM drain lever cpl. BioTec 140000 44188 1
45 ASM brush holder ScreenMatic 44308 1
46 Mud flap cap 42450 1
47 Inlet 2″ connection set BioTec 30 34367 1
