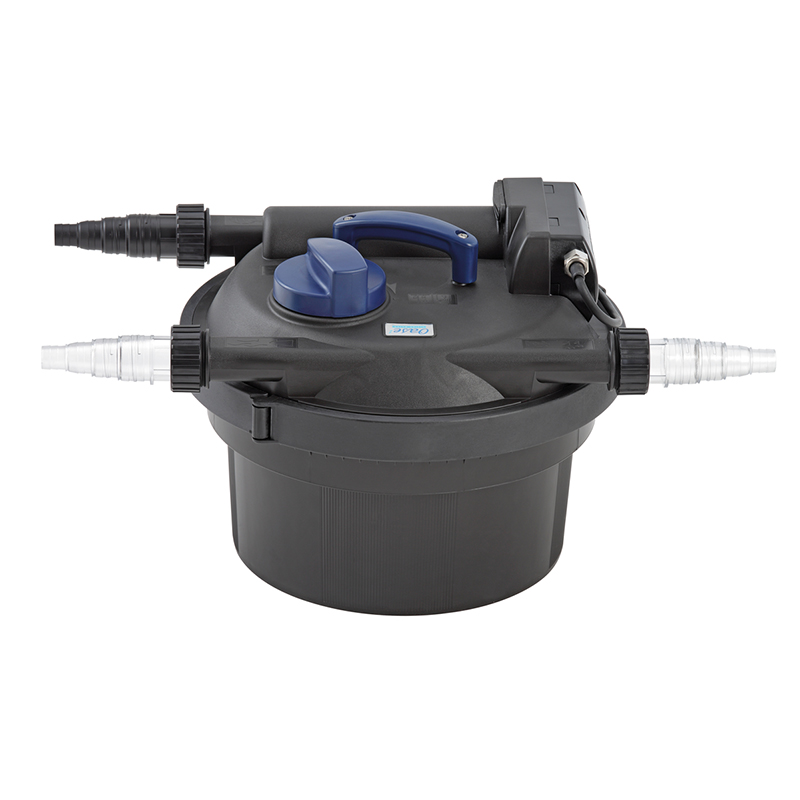

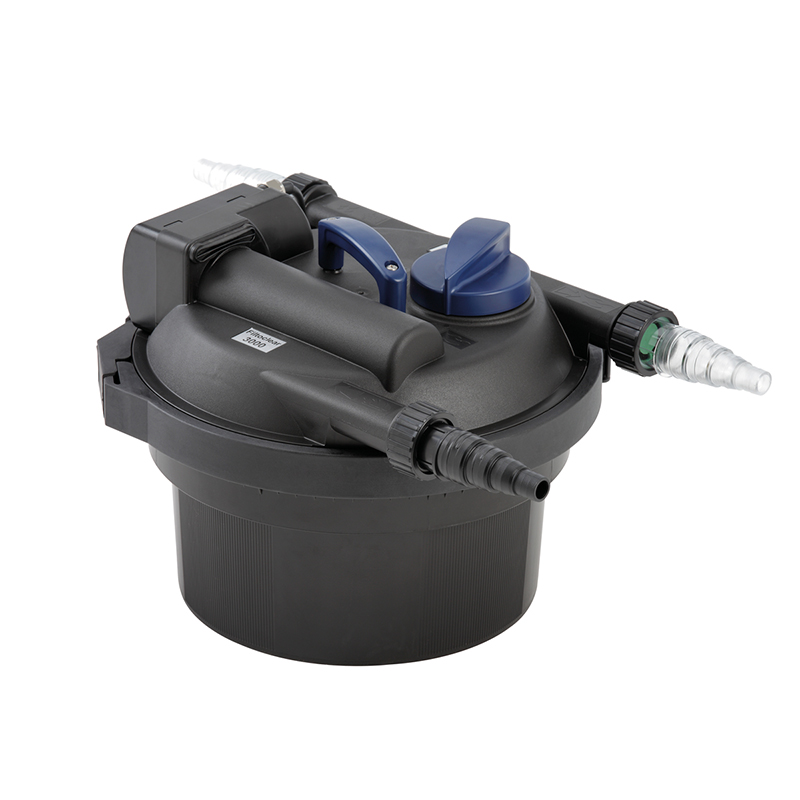

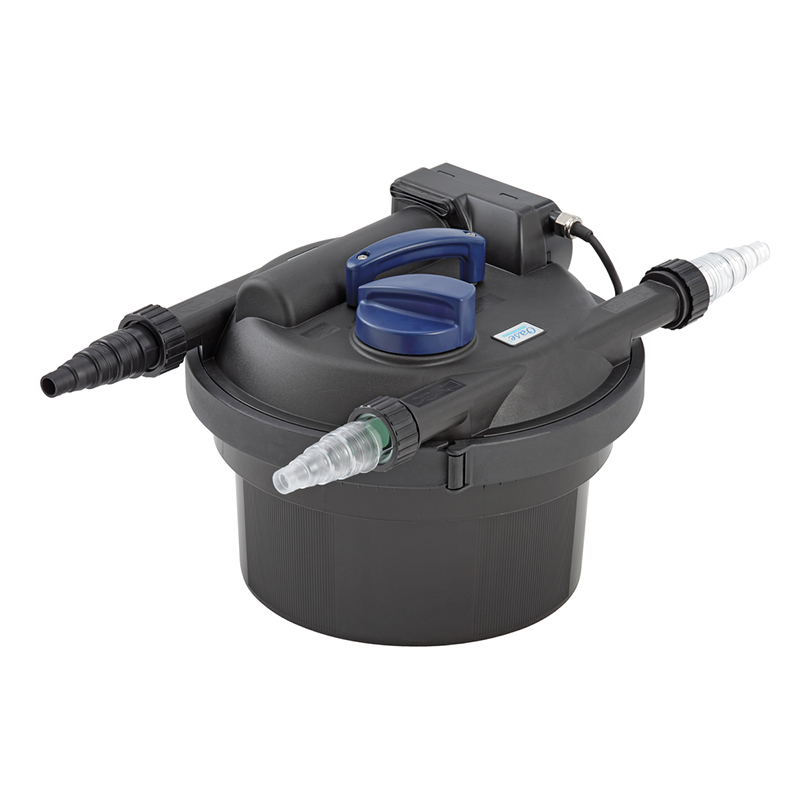

OASE FiltoClear 3000 [INT]

Original price was: $816.50.Current price is: $742.25.

Key Features

  • Clear water guaranteed through the ideal combination of filter, pump and UVC technology
  • Convenient cleaning thanks to patented Easy Clean Technology
  • Almost invisible integration in the environment

Characteristic

  • Combination of mechanical biological cleaning and effective UVC technology
  • Including OASE Clear Water Guarantee
  • Ideal for supplying higher elevated watercourses and architectural pools
  • Patented Easy-Clean technology for easy and easy cleaning without opening the filter
  • Cleaning and backflush function can be easily operated on the cover
  • Possibility of monitoring the UVC clarifier, filter contamination and water flow-through
  • Compact filter size with high filtration capacity – perfect for architectural pools and where there is little space in the garden
  • High-quality, impact-resistant material
  • Integrated in the natural environment, thanks to the possibility of in ground installation and the sandstone look of the cover
SKU: AQ-03OP004 Category:
Download Instructions

TECHNICAL DATA

TECHNICAL DATA

Dimensions (Ø x H) mm 380 x 310
Rated voltage 230 V / 50 Hz
Power consumption W 14
Power cable length m 5.00
Net weight kg 5.58
Guarantee (+ request guarantee) Years 2 + 1
UVC power W 9
Number of blue filter foams Units 2
Number of red filter foams Units 1
Pollutant level indicator Yes
Temperature display No
Inlet connections mm 19 / 25 / 32 / 38
Inlet connections ¾”, 1″, 1 ¼”, 1 ½”
Connections, outlet mm 19 / 25 / 32 / 38
Outlet connections ¾”, 1″, 1 ¼”, 1 ½”
Connections, sludge discharge mm 19 / 25 / 32 / 38
Sludge discharge connections ¾”, 1″, 1 ¼”, 1 ½”
Max. flow rate l/h 4000
Max. operating pressure bar 0.2
Suitable for ponds up to max. 3.0
Suitable for ponds with fish stock 1.5
Suitable for ponds with koi 0.8
Pos. Product SKU Quantity
A Spare ballast cpl. 9 W FiltoClear 56162 1
1 Filter box FiltoClear 3000 24460 1
2 Cover FiltoClear 3000-15000 24459 1
3 Inner part cover FiltoClear 24457 1
4 Replacement bulb UVC 9 W 54984 1
5 ASM UVC FiltoClear 9/11 W 230 V ASE 14360 1
6 Quartz glass D33 x 200 with rim 13312 1
7 Mesh tube FiltoClear 3000 / 145 mm 14235 1
8 Protection pipe UVC 34521 1
9 Spare set operation pieces FiltoClear 34579 1
10 Spare parts set screws FiltoClear 34580 1
11 Spare part gasket set FiltoClear 34581 1
12 Replacement foam set FiltoClear 3000 56109 1
13 Cleaning rod FiltoClear 3000(USA 800) 24749 2
14 Additional pack FiltoClear 3000-15000 34561 1
15 ASM clamp pressure filter 34578 1
17 Disc filter foam 34516 1
