BitronC24WBitronC24W

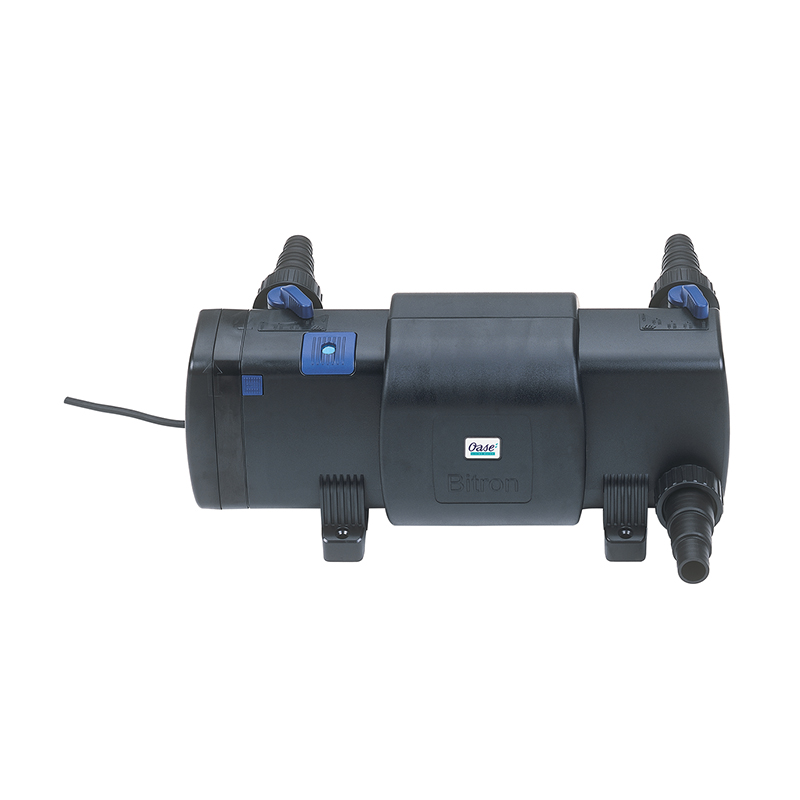

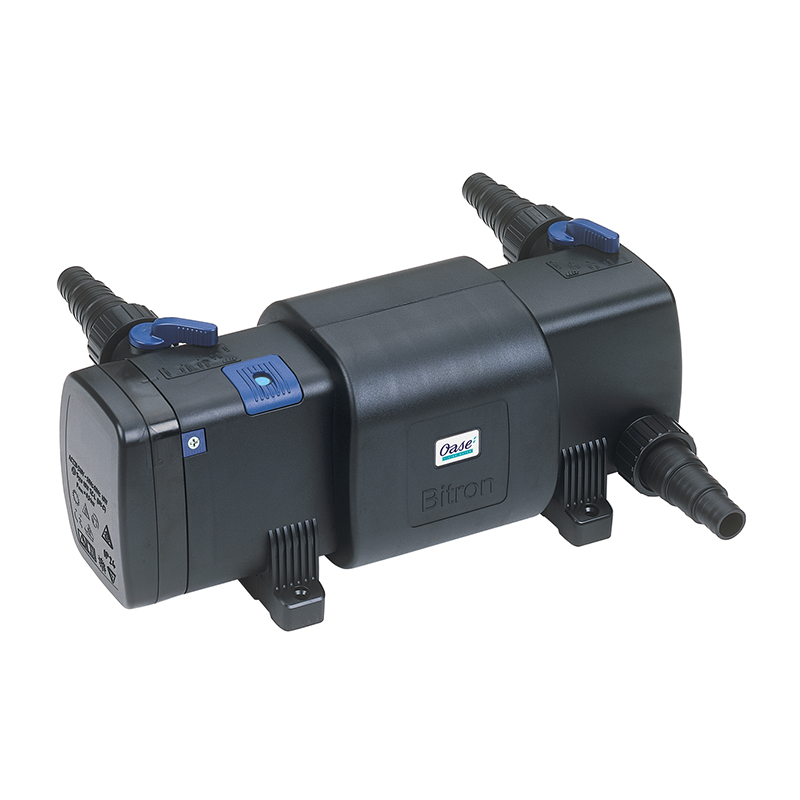

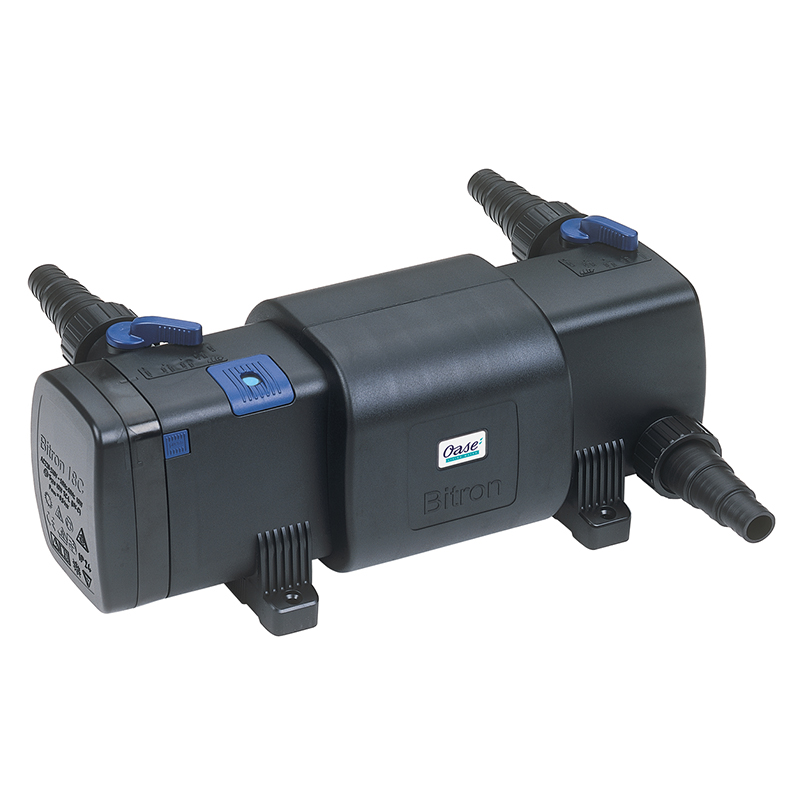

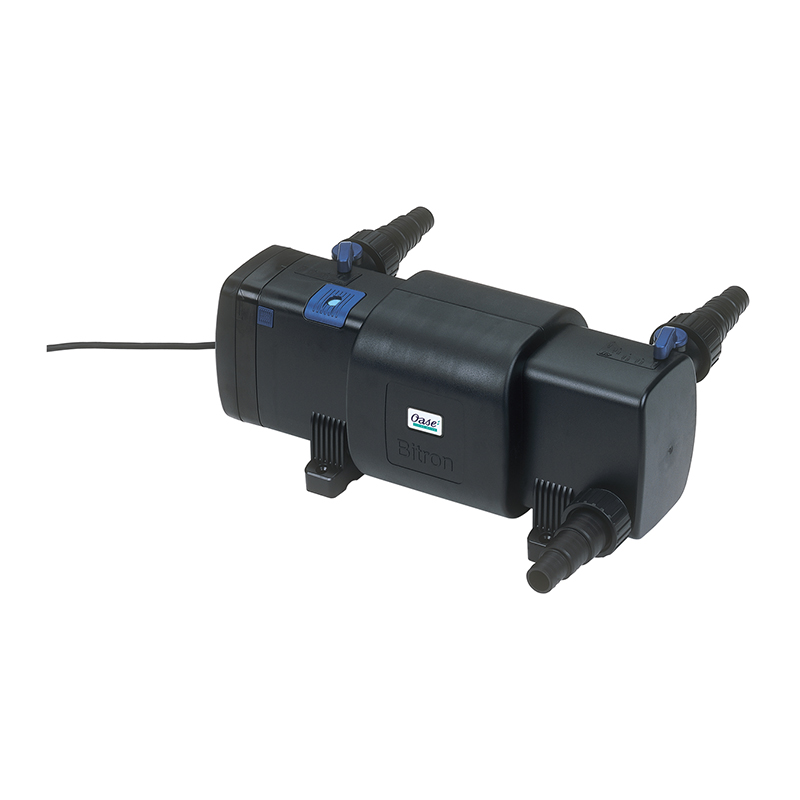

OASE Bitron C 24 W [INT]

Original price was: $1,187.00.Current price is: $1,079.10.

Key Features

  • Clever bypass system combines high flow rates with duration of radiation
  • Permanent self-cleaning thanks to patented cleaning rotor
  • Highly effective against suspended algae, bacteria and germs

Characteristic

  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen levels
  • Clever UVC function monitor, display for bulb change and water temperature
  • Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
  • Individual water flow adjustment for optimal adaptation to the connected filter pump
  • Integrated magnets protect the UVC technology against limescale deposits
  • Visual function check of the UVC bulb
  • 100% protection against eye damage
  • Quick release technology for easy bulb replacement
  • High-quality workmanship with impact resistant plastic housing
  • Incl. high quality UVC bulb
  • Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
  • Suitable for ponds up to 25.0 m³
SKU: AQ-03OU011 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 440 x 180 x 198
Rated voltage 220 – 240 V / 50/60 Hz
Power consumption W 24
Power cable length m 5.00
Net weight kg 3.50
Guarantee Years 2
UVC power W 24
Temperature display No
Bypass control manually
UVC operating hours meter No
Function check Visual
Number of inlets Units 1
Inlet connections mm 25 / 32 / 38
Inlet connections 1″, 1 ¼”, 1 ½”
Number of outlets Units 2
Connections, outlet mm 25 / 32 / 38
Outlet connections 1″, 1 ¼”, 1 ½”
Min. flow rate l/h 4000
Max. flow rate l/h 15000
Max. operating pressure bar 0.5
Suitable for ponds up to max. 25.0
Suitable for ponds with fish stock 12.5
Suitable for ponds with koi 6.5
Connection to BioSmart 18000/36000
Pos. Product SKU Quantity
1 Spare UVC cpl. unit Bitron C 24 2014 30909 1
2 Spare UVC electronic Bitron C 24 2014 30951 1
3 O-Ring NBR 82 x 2 SH70 greased 73477 1
4 Replacement bulb UVC 24 W UV24-2G11-4P-SE 1
5 Holding plate UVC-lamp Bitron18/24/36/55 24232 1
6 UVC lamp protection Bitron C 24/36/55W 30607 1
7 Quartz glass D44 x 285.5 with rim 27579 1
8 O-Ring Viton 42 x 5 SH50 greased 73486 1
9 ASM clamp screw Bitron C 35113 1
10 Spare cleaning impeller Bitron C 18 / 24 42217 1
11 Additional pack Bitron C 18-110 35092 1
12 Oval head screw CH-V2A DIN 7981 4.8×19 22853 4
13 Foot Bitron C 18 / 24 / 36 / 55 35028 2
14 Spare housing Bitron C 18 / 24 35111 1
15 Additional pack Bitron C 18 / 24 35090 1
16 ASM Locking l.Bitron C 18/24/36/55W 2016 47817 1
