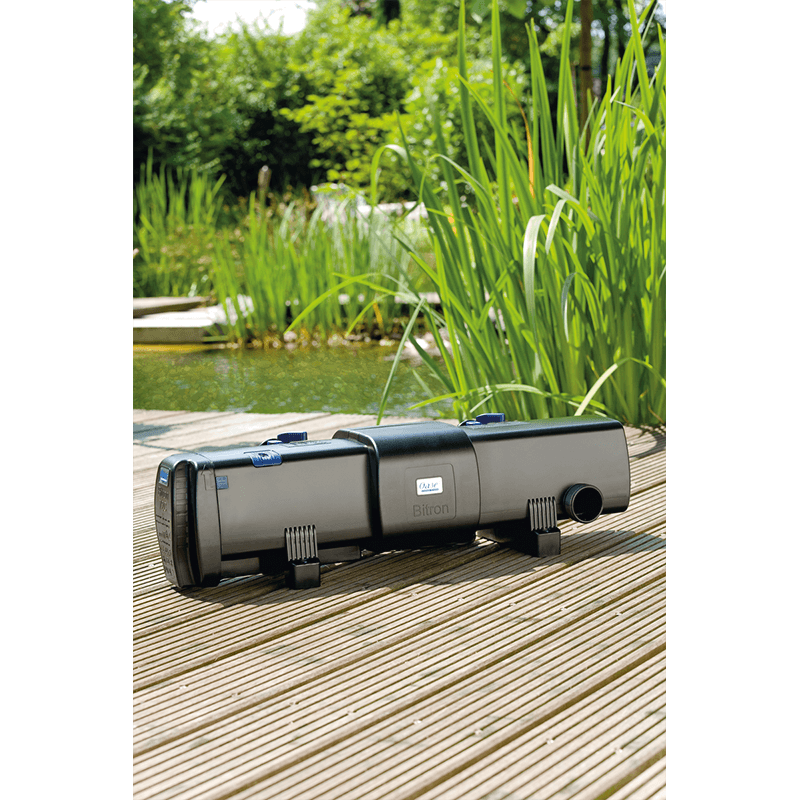

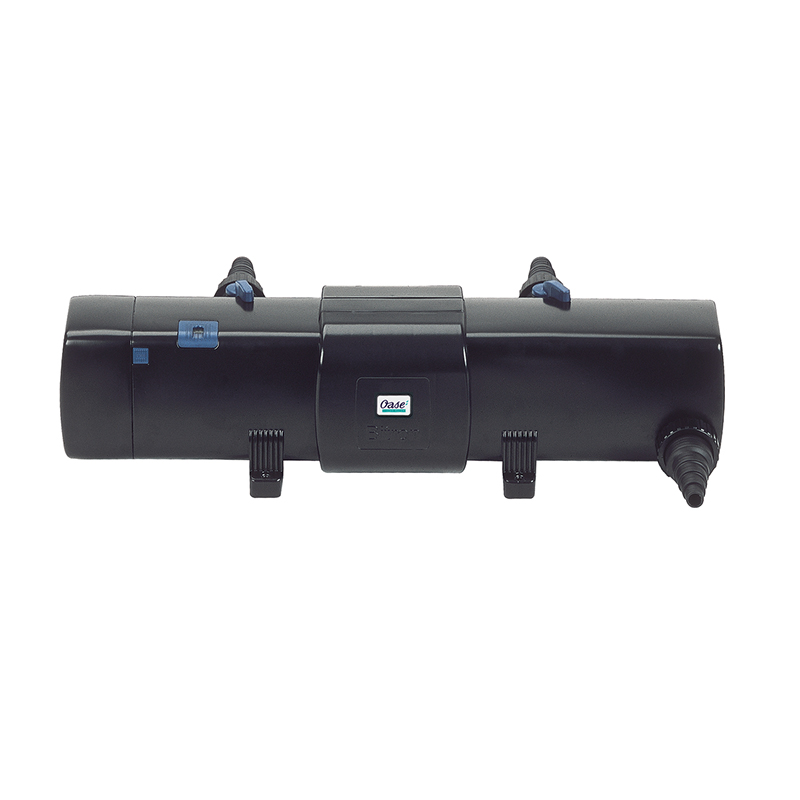

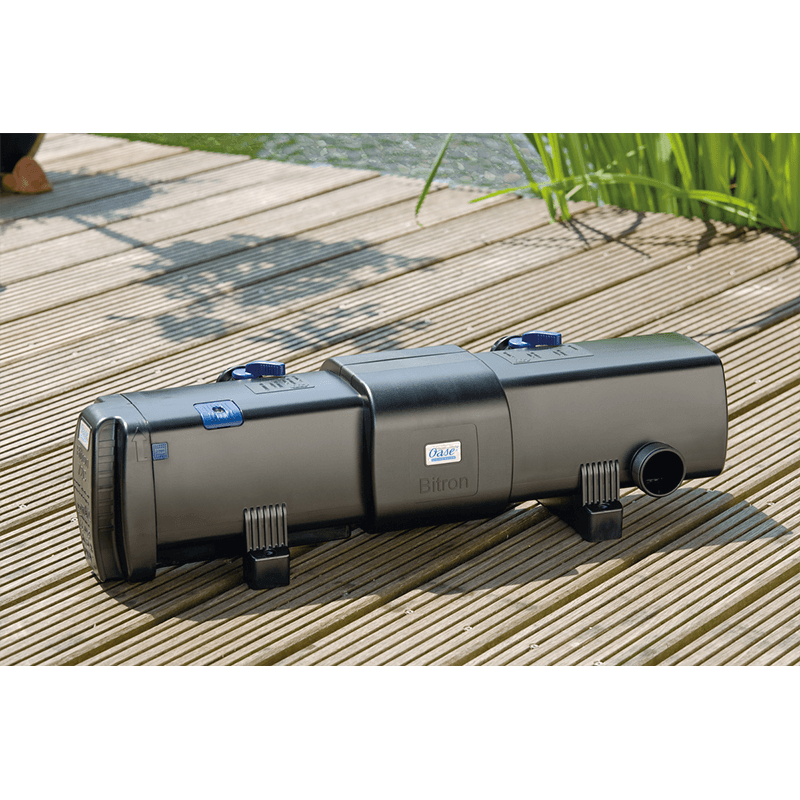

OASE Bitron C 72 W [INT]

Original price was: $1,789.35.Current price is: $1,626.70.

Key Features

  • Clever bypass system combines high flow rates with duration of radiation
  • Permanent self-cleaning thanks to patented cleaning rotor
  • Highly effective against suspended algae, bacteria and germs

Characteristic

  • Elimination of suspended algae (green water)
  • Reduction of harmful bacteria and pathogen levels
  • Clever UVC function monitor, display for bulb change and water temperature
  • Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
  • Individual water flow adjustment for optimal adaptation to the connected filter pump
  • Integrated magnets protect the UVC technology against limescale deposits
  • Visual function check of the UVC bulb
  • 100% protection against eye damage
  • Quick release technology for easy bulb replacement
  • High-quality workmanship with impact resistant plastic housing
  • Incl. high quality UVC bulb
  • Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
  • Suitable for ponds up to 75.0 m³
SKU: AQ-03OU009 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 730 x 215 x 200
Rated voltage 220 – 240 V / 50/60 Hz
Power consumption W 72
Power cable length m 5.00
Net weight kg 6.44
Guarantee Years 2
UVC power W 72
Temperature display No
Bypass control manually
UVC operating hours meter No
Function check Visual
Number of inlets Units 1
Inlet connections mm 19 / 25 / 32 / 38 / 50
Inlet connections ¾”, 1″, 1 ¼”, 1 ½”, 2″
Number of outlets Units 2
Connections, outlet mm 25 / 32 / 38
Outlet connections 1″, 1 ¼”, 1 ½”
Min. flow rate l/h 12000
Max. flow rate l/h 40000
Max. operating pressure bar 1
Suitable for ponds up to max. 75.0
Suitable for ponds with fish stock 37.5
Suitable for ponds with koi 19.0
Connection to BioTec 30, BioTec ScreenMatic² 90 – 140000, ProfiClear
Pos. Product SKU Quantity
1 Spare UVC cpl. unit Bitron C 72 2014 30919 1
2 Spare UVC electronic Bitron C 72 2014 30997 1
3 O-Ring NBR 102 x 3 SH50 A greased 73488 1
4 Replacement bulb UVC 36 W UV36-2G11-4P-SE 2
5 Holding plate UVC lamp 19448 4
6 UVC lamp holder Bitron C 72 / 110 27129 1
7 Quartz glass D67.1 x 619.8 with rim 13327 1
8 O-Ring Viton 65 x 6 SH50 A 27117 1
9 ASM clamp screw Bitron C 72 / 110 35330 1
10 Cleaning impeller Bitron C 72 / 110 35327 1
11 Additional pack Bitron C 18-110 35092 1
12 Oval head screw CH-V2A DIN 7981 4.8×19 22853 4
13 Foot Bitron C 72 / 110 35335 2
14 Spare housing Bitron C 72 / 110 35329 1
15 Additional pack Bitron C 36/55/72/110 35091 1
16 ASM Locking l.Bitron C 18/24/36/55W 2016 47817 1
