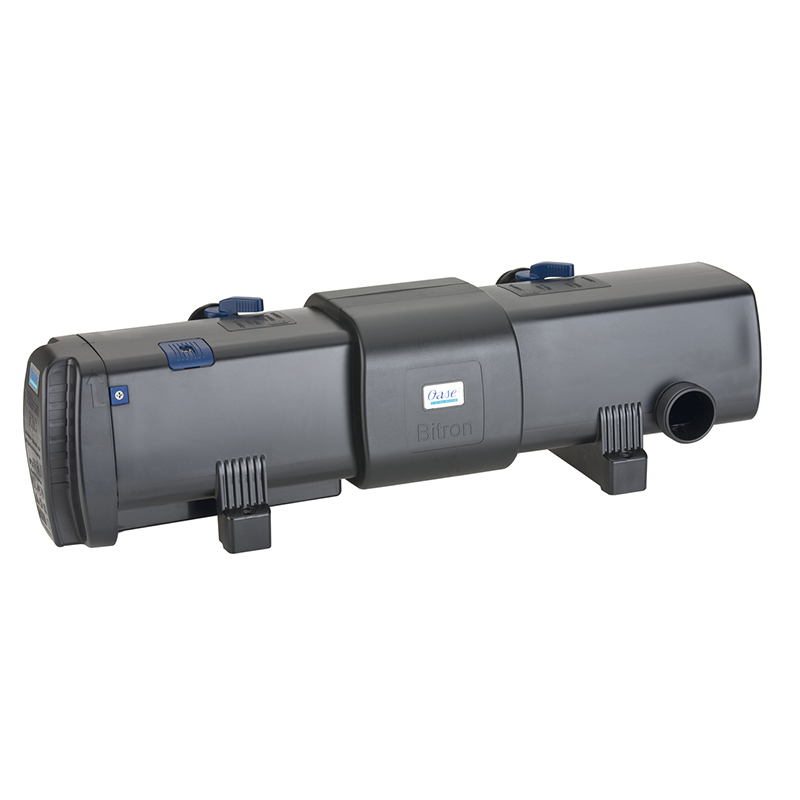

OASE Bitron C 110 W [INT]

Original price was: $2,118.95.Current price is: $1,926.30.

Elimination of suspended algae (green water)
Reduction of harmful bacteria and pathogen levels
Clever UVC function monitor, display for bulb change and water temperature
Bypass technology enables optimal irradiation of the polluted water, even at high flow through rates
Individual water flow adjustment for optimal adaptation to the connected filter pump
Integrated magnets protect the UVC technology against limescale deposits
Visual function check of the UVC bulb
100% protection against eye damage
Quick release technology for easy bulb replacement
High-quality workmanship with impact resistant plastic housing
Incl. high quality UVC bulb
Including OASE Clear Water Guarantee in conjunction with the OASE flow through filters, BioSmart, BioTec and ProfiClear
Suitable for ponds up to 110.0 m³

SKU: AQ-03OU010 Category: Filtration

TECHNICAL DATA

Dimensions (L x W x H)	mm	730 x 215 x 200
Rated voltage		220 – 240 V / 50/60 Hz
Power consumption	W	110
Power cable length	m	5.00
Net weight	kg	6.50
Guarantee	Years	2
UVC power	W	110
Temperature display		No
Bypass control		manually
UVC operating hours meter		No
Function check		Visual
Number of inlets	Units	1
Inlet connections	mm	19 / 25 / 32 / 38 / 50
Inlet connections		¾”, 1″, 1 ¼”, 1 ½”, 2″
Number of outlets	Units	2
Connections, outlet	mm	25 / 32 / 38
Outlet connections		1″, 1 ¼”, 1 ½”
Min. flow rate	l/h	12000
Max. flow rate	l/h	40000
Max. operating pressure	bar	1
Suitable for ponds up to max.	m³	110.0
Suitable for ponds with fish stock	m³	55.0
Suitable for ponds with koi	m³	27.5
Connection to		BioTec 30, BioTec ScreenMatic² 90 – 140000, ProfiClear

Pos.	Product	SKU	Quantity
1	Spare UVC cpl. unit Bitron C 110 2014	30922	1
2	Spare UVC electronic Bitron C 110 2014	31002	1
3	O-Ring NBR 102 x 3 SH50 A greased	73488	1
4	Replacement bulb UVC 55 W	UV55-2G11-4P-SE	2
5	Holding plate UVC lamp	19448	4
6	UVC lamp holder Bitron C 72 / 110	27129	1
7	Quartz glass D67.1 x 619.8 with rim	13327	1
8	O-Ring Viton 65 x 6 SH50 A	27117	1
9	ASM clamp screw Bitron C 72 / 110	35330	1
10	Cleaning impeller Bitron C 72 / 110	35327	1
11	Additional pack Bitron C 18-110	35092	1
12	Oval head screw CH-V2A DIN 7981 4.8×19	22853	4
13	Foot Bitron C 72 / 110	35335	2
14	Spare housing Bitron C 72 / 110	35329	1
15	Additional pack Bitron C 36/55/72/110	35091	1
16	ASM Locking l.Bitron C 18/24/36/55W 2016	47817	1
