Sale!
FOT_PRD_FREI_FRRE_70237-Filtral-UVC-3000FOT_PRD_FREI_FRRE_70237-Filtral-UVC-3000

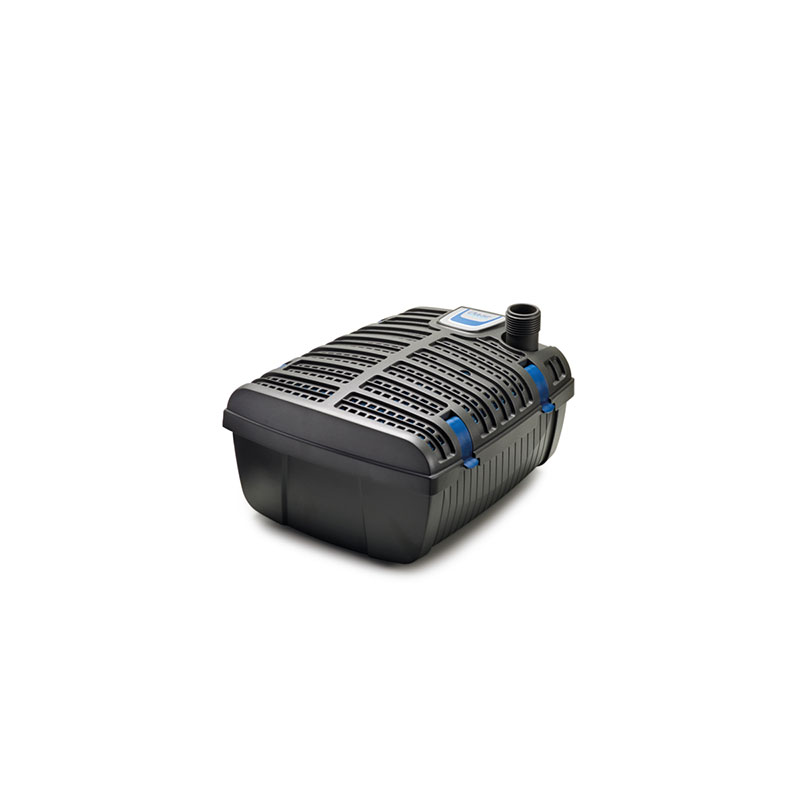

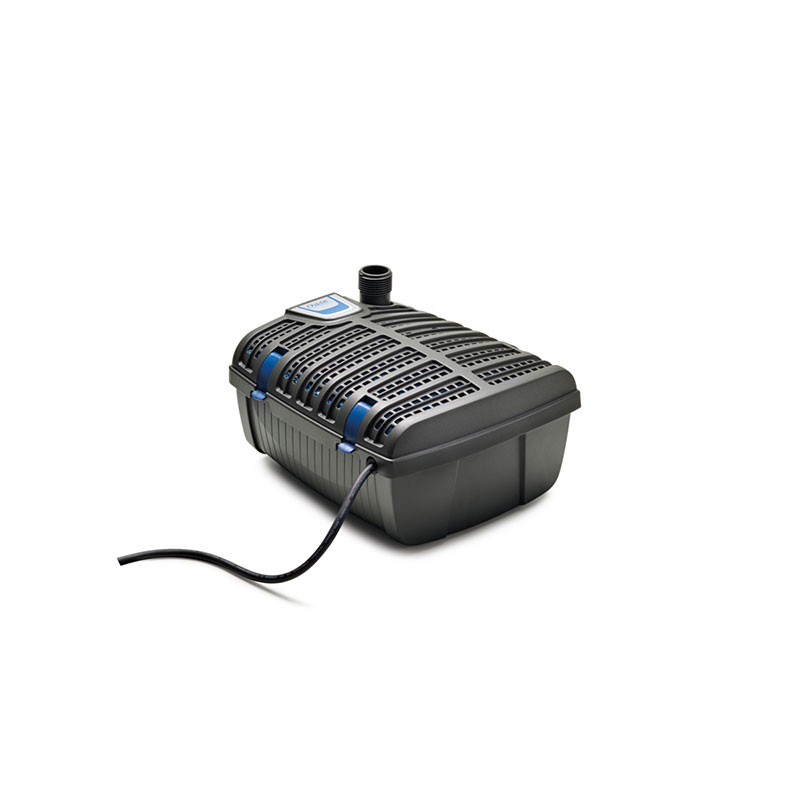

OASE Filtral UVC 3000

Original price was: $559.45.Current price is: $508.60.

Key Features

  • Multifunctional compact solution for pre-fabricated pools and smaller ponds
  • Clear water, guaranteed, and beautiful fountains
  • The technology is virtually invisible because it is set up underwater

Characteristic

  • Including OASE Clear Water Guarantee
  • Compact filter unit with UVC technology and 4 different filter materials
  • The pump for attractive fountains is already integrated
  • Adjustable T-piece for operating spouts and small watercourses
  • Individual adjustment of flow rate and fountain height
  • Set up completely under water – the appearance of the pond remains undisturbed
  • Visual function check of the UVC clarifier
  • Suitable for ponds up to 3.0 m³
SKU: AQ-03OF011 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 269 x 245 x 140
Rated voltage 230 V / 50 Hz
Power consumption W 36
Power cable length m 10.00
Net weight kg 3.70
Guarantee Years 2
UVC power W 9
Pump capacity, max. l/h 1500
Max. flow rate l/h 1200
Max. head height, metres m 1.80
Filter intake surface cm² 440
Number of blue filter foams Units 1
Number of red filter foams Units 1
Number of bio-surface elements Units 2
Special filter granulate kg 0.20
Pressure-side connection mm 13 / 19 / 25
Pressure-side connection ½”, ¾”, 1″
Suitable for ponds up to max. 3.0
Suitable for ponds with fish stock 1.5
Aeration set included in the scope of delivery No
Pos. Product SKU Quantity
1 Replacement outer housing Filtral medium 72782 1
2 ASM replacement pump / UVC Filtral 3000 72785 1
3 Replacement bulb UVC 9 W 54984 1
4 ASM repl. quartz glass Filtral medium 72793 1
5 ASM repl. water housing Filtral medium 72789 1
6 Spare rotor cpl. ASE 1500 magnetized 18012 1
7 ASM pump housing ASE 1500 35769 1
8 Replacement foam set Filtral UVC 3000 70241 1
9 Bio surface element 19503 1
10 Replacement ceramic bag Filtral medium 72796 1
11 O-Ring NBR 75 x 2.5 SH70 19945 1
12 Replacement set clips Filtral 72798 1
14 Additional pack Filtral 3000/6000 70832 1
