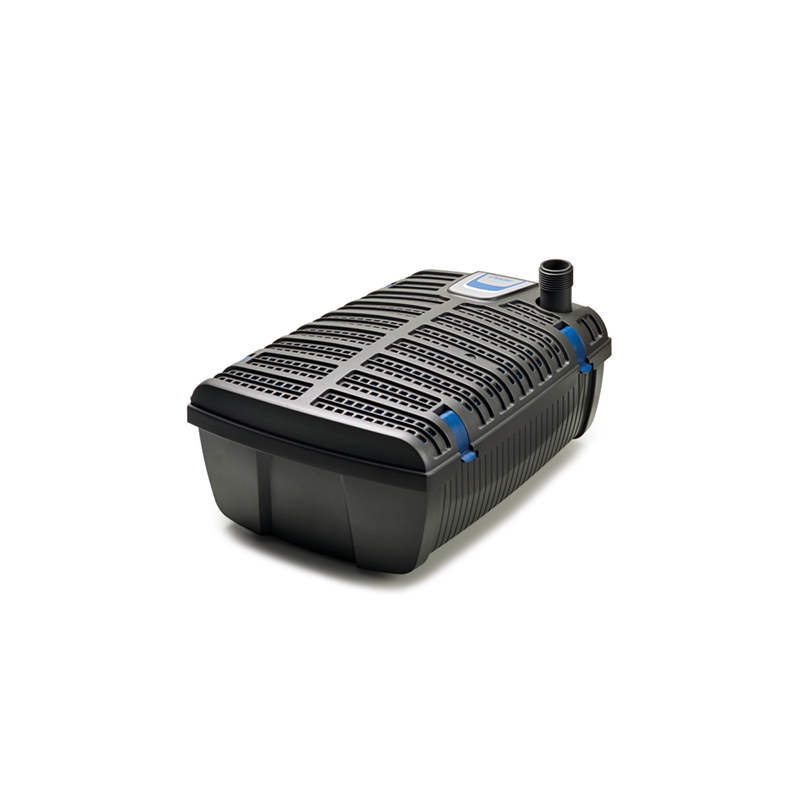

OASE Filtral UVC 6000

$661.35

Key Features

  • Multifunctional compact solution for pre-fabricated pools and smaller ponds
  • Clear water, guaranteed, and beautiful fountains
  • The technology is virtually invisible because it is set up underwater

Characteristic

  • Including OASE Clear Water Guarantee
  • Compact filter unit with UVC technology and 4 different filter materials
  • The pump for attractive fountains is already integrated
  • Adjustable T-piece for operating spouts and small watercourses
  • Individual adjustment of flow rate and fountain height
  • Set up completely under water – the appearance of the pond remains undisturbed
  • Visual function check of the UVC clarifier
  • Suitable for ponds up to 6.0 m³
SKU: AQ-03OF012 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 347 x 276 x 157
Rated voltage 230 V / 50 Hz
Power consumption W 52
Power cable length m 10.00
Net weight kg 5.00
Guarantee Years 2
UVC power W 11
Pump capacity, max. l/h 2500
Max. flow rate l/h 1700
Max. head height, metres m 2.10
Filter intake surface cm² 697
Number of blue filter foams Units 1
Number of red filter foams Units 1
Number of bio-surface elements Units 4
Special filter granulate kg 0.80
Pressure-side connection mm 13 / 19 / 25
Pressure-side connection ½”, ¾”, 1″
Suitable for ponds up to max. 6.0
Suitable for ponds with fish stock 3.0
Aeration set included in the scope of delivery No
Pos. Product SKU Quantity
1 Replacement outer housing Filtral large 72783 1
2 ASM replacement pump / UVC Filtral 6000 72786 1
3 Replacement bulb UVC 11 W 56112 1
4 ASM repl. quartz glass Filtral large 72794 1
5 ASM repl. water housing Filtral large 72790 1
6 Spare rotor cpl. ASE 2500 magnetized 18013 1
7 ASM pump housing ASE 2500 35770 1
8 Repl. foam set Filtral UVC 6000/9000 70242 1
9 Bio surface element 19503 1
10 Replacement ceramic bag Filtral large 72797 1
11 O-Ring NBR 75 x 2.5 SH70 19945 1
12 Replacement set clips Filtral 72798 1
14 Additional pack Filtral medium/large 70831 4
