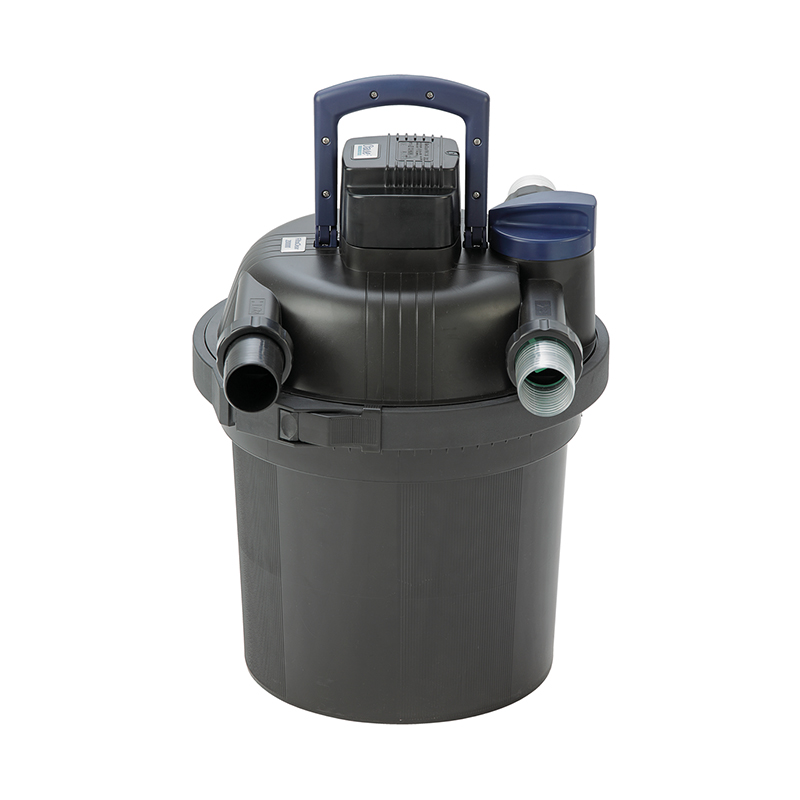

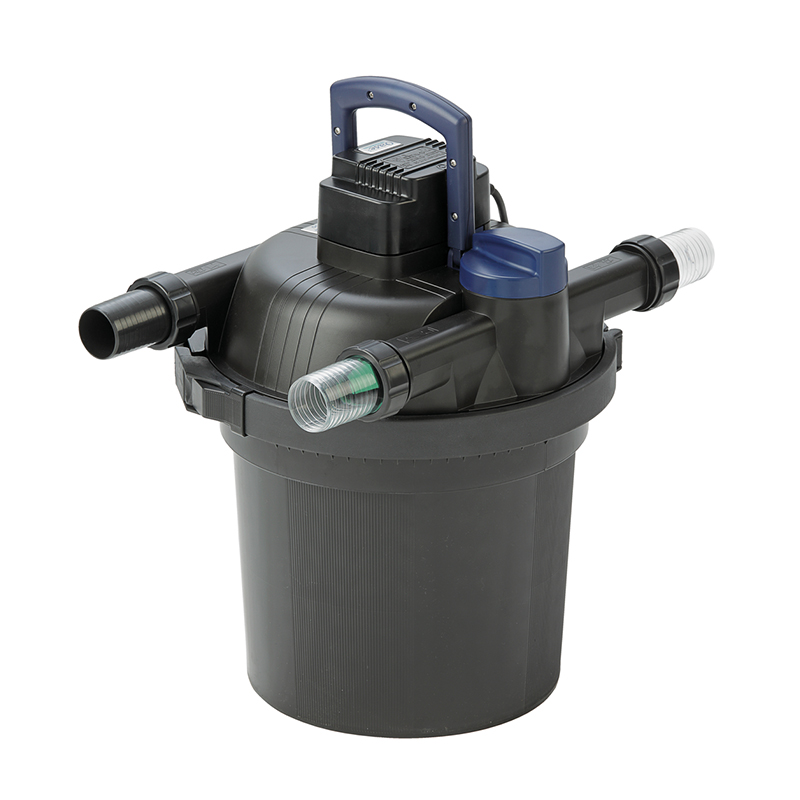

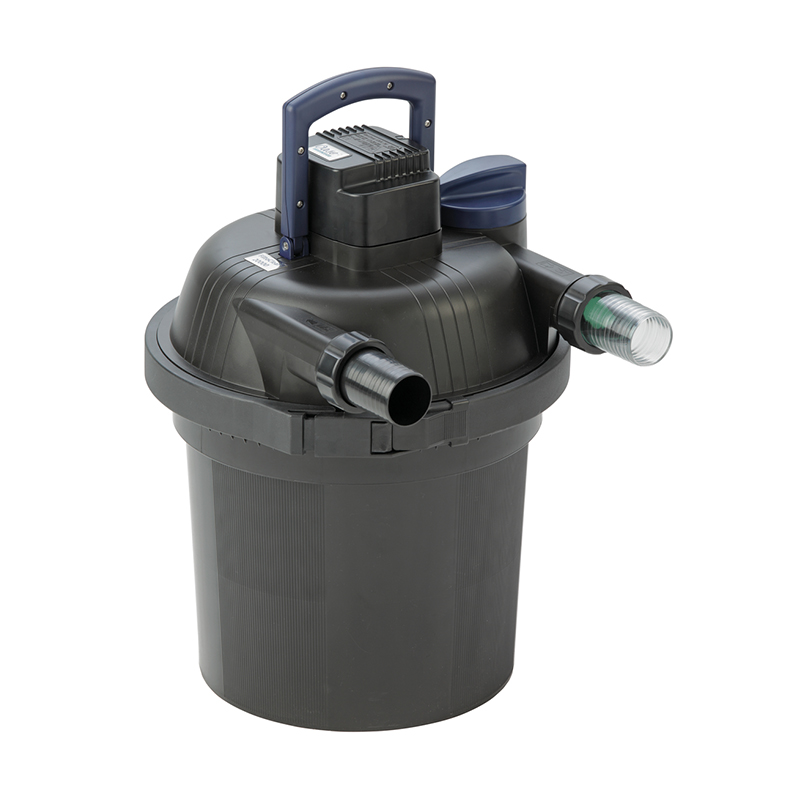

OASE FiltoClear 12000

Original price was: $1,539.90.Current price is: $1,399.90.

Clear water guaranteed through the ideal combination of filter, pump and UVC technology
Convenient cleaning thanks to patented Easy Clean Technology
Almost invisible integration in the environment

Combination of mechanical biological cleaning and effective UVC technology
Including OASE Clear Water Guarantee
Ideal for supplying higher elevated watercourses and architectural pools
Patented Easy-Clean technology for easy and easy cleaning without opening the filter
Cleaning and backflush function can be easily operated on the cover
Possibility of monitoring the UVC clarifier, filter contamination and water flow-through
Compact filter size with high filtration capacity – perfect for architectural pools and where there is little space in the garden
High-quality, impact-resistant material
Integrated in the natural environment, thanks to the possibility of in ground installation and the sandstone look of the cover
Incl. UVC clear rinse function for easy cleaning of the UVC unit
Incl. 2″ hose connection

SKU: AQ-03OP006 Category: Filtration

TECHNICAL DATA

Dimensions (Ø x H)	mm	380 x 510
Rated voltage		230 V / 50 Hz
Power consumption	W	18
Power cable length	m	5.00
Net weight	kg	7.00
Guarantee (+ request guarantee)	Years	2 + 1
UVC power	W	18
Number of blue filter foams	Units	3
Number of red filter foams	Units	2
Pollutant level indicator		Yes
Temperature display		No
Inlet connections	mm	38 / 50
Inlet connections		1 ½”, 2″
Connections, outlet	mm	38 / 50
Outlet connections		1 ½”, 2″
Connections, sludge discharge	mm	38 / 50
Sludge discharge connections		1 ½”, 2″
Max. flow rate	l/h	8000
Max. operating pressure	bar	0.2
Suitable for ponds up to max.	m³	12.0
Suitable for ponds with fish stock	m³	6.0
Suitable for ponds with koi	m³	3.0

Pos.	Product	SKU	Quantity
A	Spare part lid FiltoClear 12000	21377	1
B	ASM UVC FiltoClear 12000 cpl.	21294	1
1	Additional pack FiltoClear 12000 – 30000	15830	1
2	Screw cap 2″	25993	1
3	ASM clamp pressure filter	34578	1
4	Filter box FiltoClear 6000	24461	1
5	Replacement foam set FiltoClear 12000	51255	1
6	Lip seal case/disc	15956	1
7	Foam plate FiltoClear 12000 – 30000	21539	1
8	Gasket set FiltoClear 12000 – 30000	16033	1
9	Spare part handle FiltoClear 12000-30000	16029	1
10	Spare part twist grip FiltoClear12-30000	16064	1
11	Spare part mesh tube FiltoClear 12000	21653	1
12	Cleaning rod FiltoClear 6000 (USA 1600)	24748	1
13	ASM lamp head FiltoClear UVC 18	21303	1
14	Replacement bulb UVC 18 W	56236	1
15	Quartz glass D44 x 298 with rim	13332	1
16	Spare part clamp bolt setFiltoClear12-30	16031	1
17	Stepped hose tail 2″	34056	1
