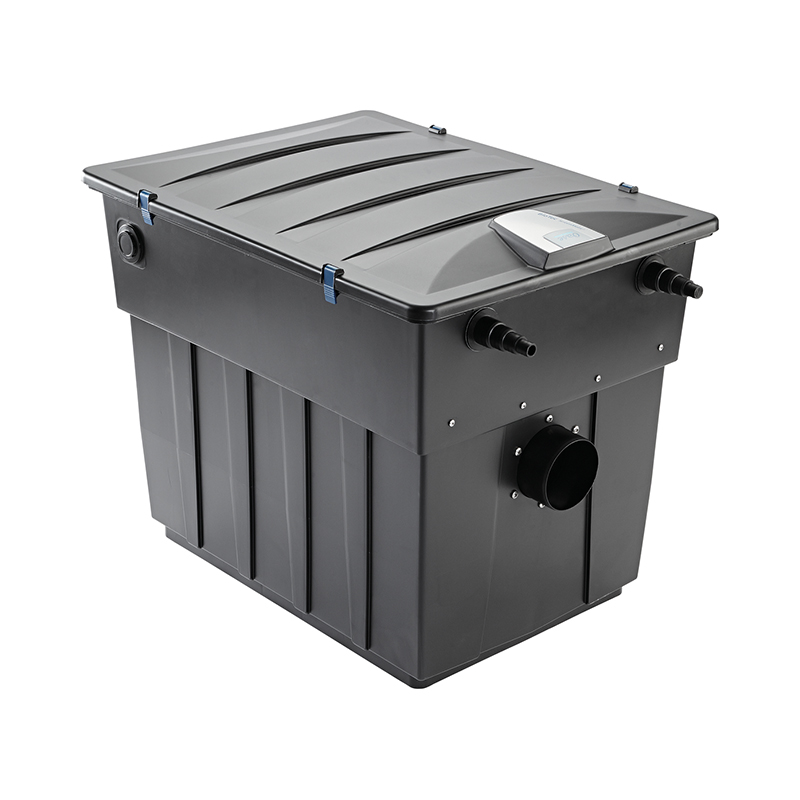

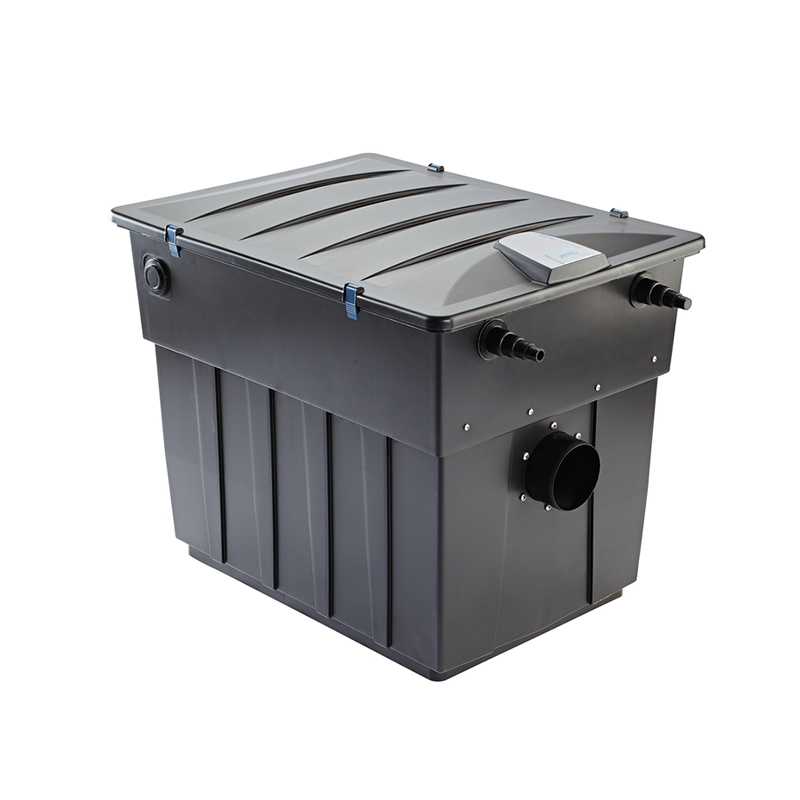

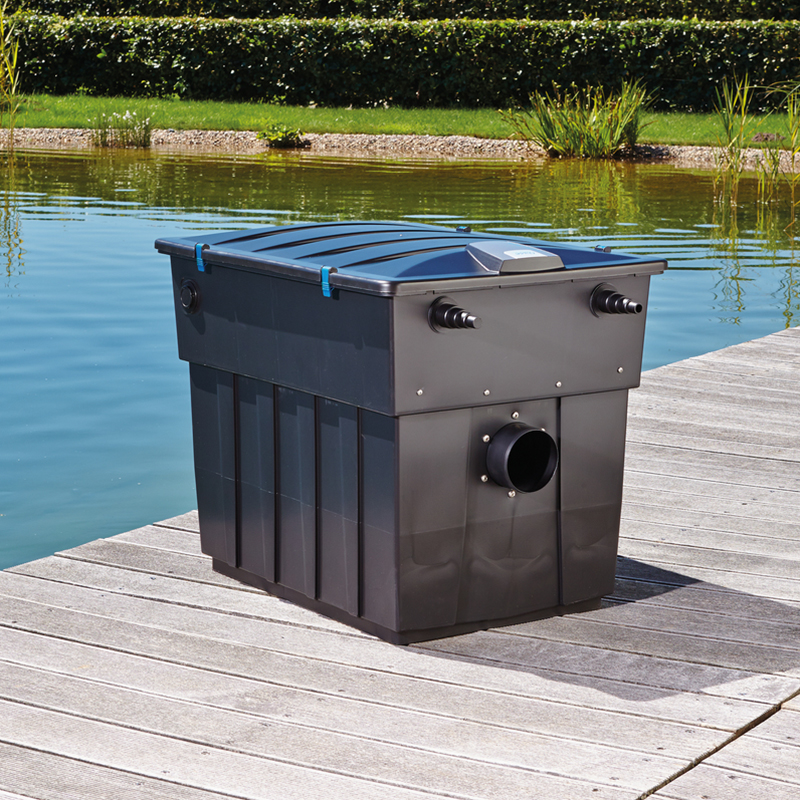

OASE BioTec ScreenMatic² 90000 [INT]

Original price was: $4,104.30.Current price is: $3,731.20.

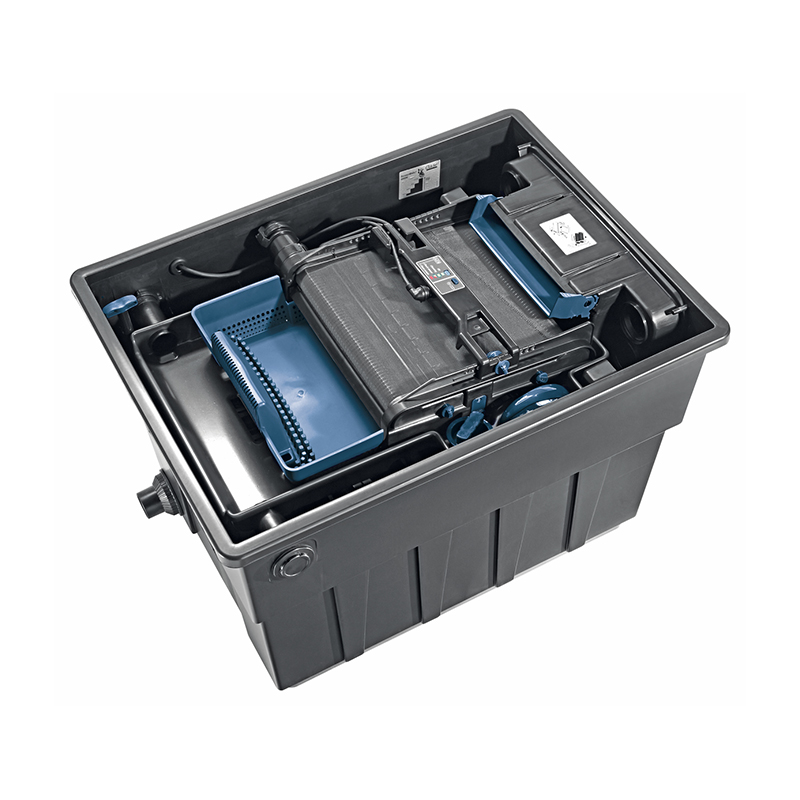

Key Features

Clear and healthy pond water with minimum maintenance requirements
Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
Continuous belt filter at an affordable price

Characteristic

Incl. OASE Clear Water Guarantee
Significantly less maintenance is required, thanks to coarse debris extraction
More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Incl. LED function check
Cleaning of filter sponges directly in the filter, without removal
Sludge drain with slide valve for removing debris from the filter system
Different filter media for optimal development of filter bacteria
Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
Optimally matched to OASE AquaMax Eco filter pumps
Direct connection possibility for Bitron C and Eco UVC clarifiers
Reinforced strap material for an extended service life
Double-sealed motor for an extended service life
Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
Sludge basket with greater volume and simplified handling
Rubberised separating lip for outstanding separation result
Free brush for occasional cleaning of the belt filter
Manual belt run now possible via button
Highly effective flow-through filter for ponds up to 90.0 m³
Lids of models 40,000 and 60,000 with storm-safe fastening clips

SKU: AQ-03OG005 Category: Filtration

Download Instructions

TECHNICAL DATA

Dimensions (L x W x H)	mm	788 x 590 x 645
Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
Power consumption	W	5
Cable length 12 V device (with power unit)	m	2.10 (Power unit) + 5.00
Net weight	kg	27.00
Guarantee (+ request guarantee)	Years	2 + 1
Number of filter foams, total	Units	16
Number of blue filter foams	Units	4
Number of red filter foams	Units	6
Number of purple filter foams	Units	6
Special filter granulate	kg	5.00
Temperature display		No
Coarse debris extraction	µm	300
Inlet connections	mm	25 / 32 / 38 / 50
Inlet connections		1″, 1 ¼”, 1 ½”, 2″
Outlet connections		DN 110
Sludge discharge connections		DN 50
Min. flow rate	l/h	8000
Max. flow rate	l/h	12500
Suitable for ponds up to max.	m³	90.0
Suitable for ponds with fish stock	m³	45.0
Suitable for ponds with koi	m³	22.5
Connection to		Bitron C 36 – 110 W, Bitron Eco 120 – 240 W

Pos.	Product	SKU	Quantity
1	Spare ASM filter lid incl. design plate	45320	1
2	Clip Bitron Eco / AquaMax	30983	1
3	Mud basket BioTec ScreenMatic	42346	1
4	Brush BioTec ScreenMatic	42449	1
5	Screen holder BioTec ScreenMatic 90000	45323	1
6	Substrate pipe cpl. BioTec 18 / 36	25507	1
7	Partition wall BioTec ScreenMatic 90000	42342	1
8	Seal partition wall ScreenMatic 90000	47031	1
9	Pull rod plug	34830	2
10	Pull rod BioTec 18	25624	1
11	ASM container BioTec ScreenMatic² 90000	49600	1
12	Spare screen holder fixation 2015	44181	1
13	Cleaner BioTec 90000	45252	1
14	Transformer 6 VA 2m H05RN-F 2 x 0.75 mm²	15118	1
15	Plug BioTec ScreenMatic 140000	44173	1
16	ASM BioTec ScreenMatic 40/60/90000	42383	1
17	Spare small parts BioTec ScreenM. 2015	44178	1
18	Spare ASM controller ScreenM.40/60/90000	44184	1
19	Woven fabric BioTec ScreenM. 40000/60000	42325	1
20	ASM scraper with brush ScreenMatic 2015	44177	1
21	Spare traction unit BioTec ScreenMatic²	44183	1
22	Add. pack ScreenMatic² 2017	48674	1
23	Step. grommet 1 1/2″+thread closed 2018	43749	1
24	Flat gasket NBR 60 x 47 x 3 SH40	19506	1
25	ASM distributor ScreenMatic 40000/60000	44337	1
26	O-Ring NBR 54 x 4 SH40	25691	1
27	Inlet locking nut BioTec ScreenMatic	42949	1
28	Spare gasket seal distributor	44179	1
29	Oval head screw CH-V2A DIN 7981 4.8 x 22	25000	8
30	ASM connection BioTec DN110	48686	1
31	Spare drain ASM BioTec	44182	1
32	Gasket set outlet BioTec 12-18 / M1-M5	34859	1
33	Foam pad cover BioTec	34670	8
34	Replacement set blue BioTec 40-/90000	42895	2
35	Foam holder BioTec 90000	45254	1
36	Foam holder locking clip BioTec	45325	2
37	Repl. set foam re/pu BioTec 40-/90000	42893	6
38	ASM brush holder ScreenMatic	44308	1
39	Mud flap cap	42450	1
40	Inlet 2″ connection set BioTec 30	34367	1
41	Holder cleaner BioTec 90000	45255	1
