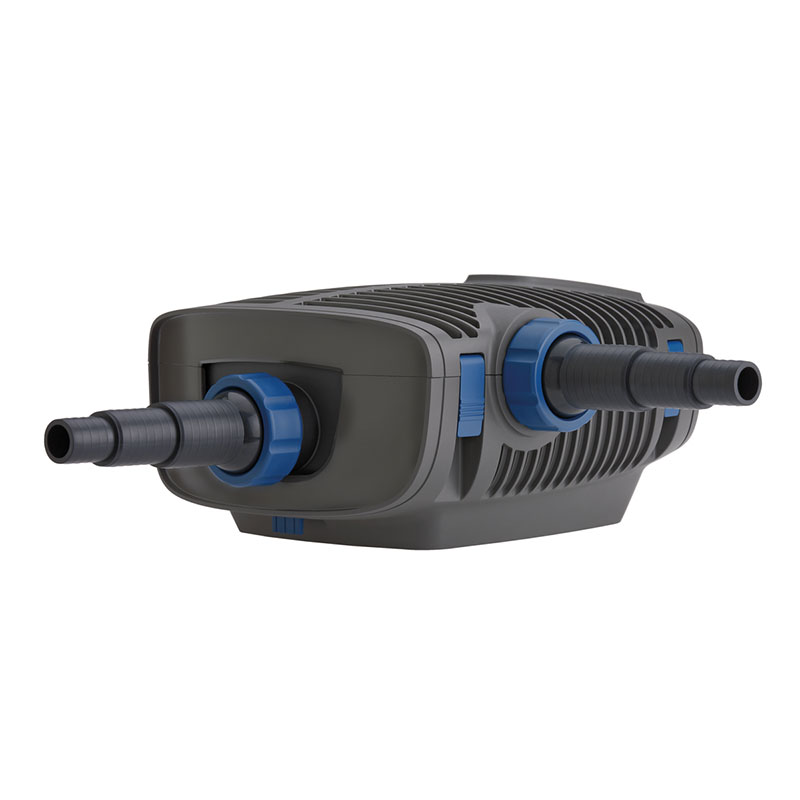

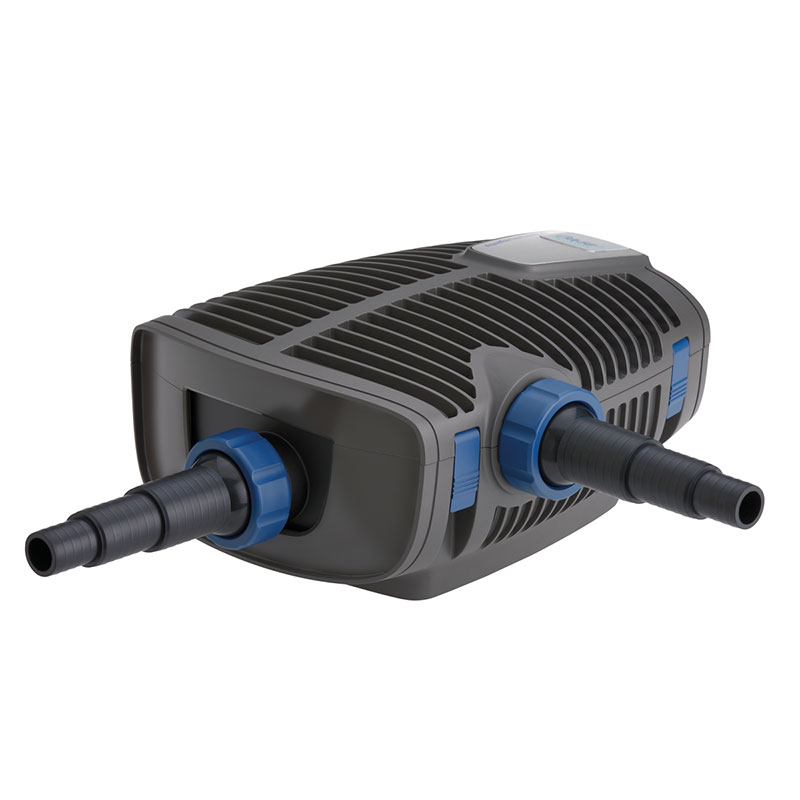

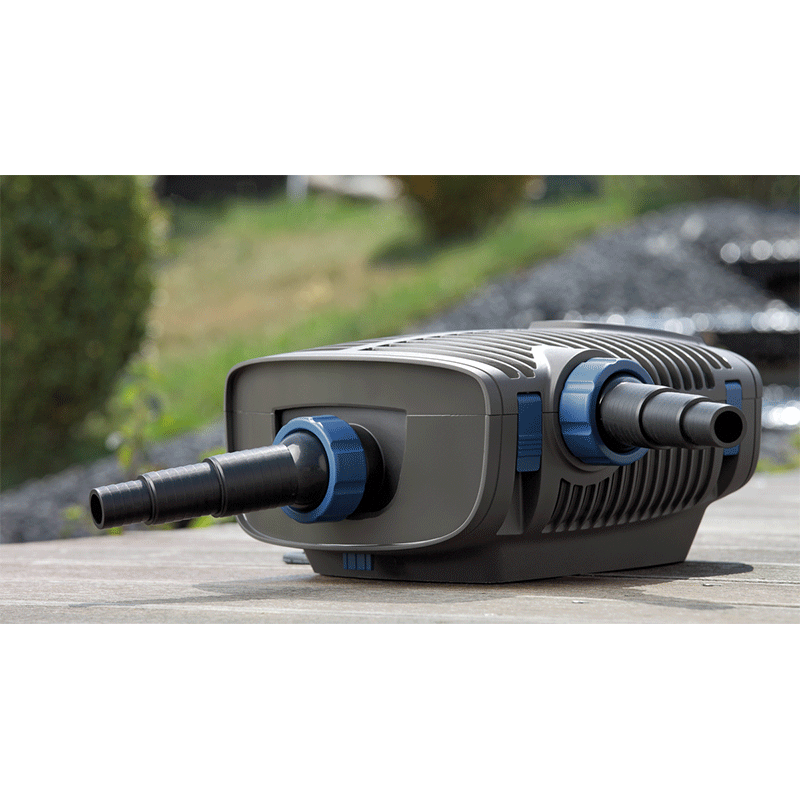

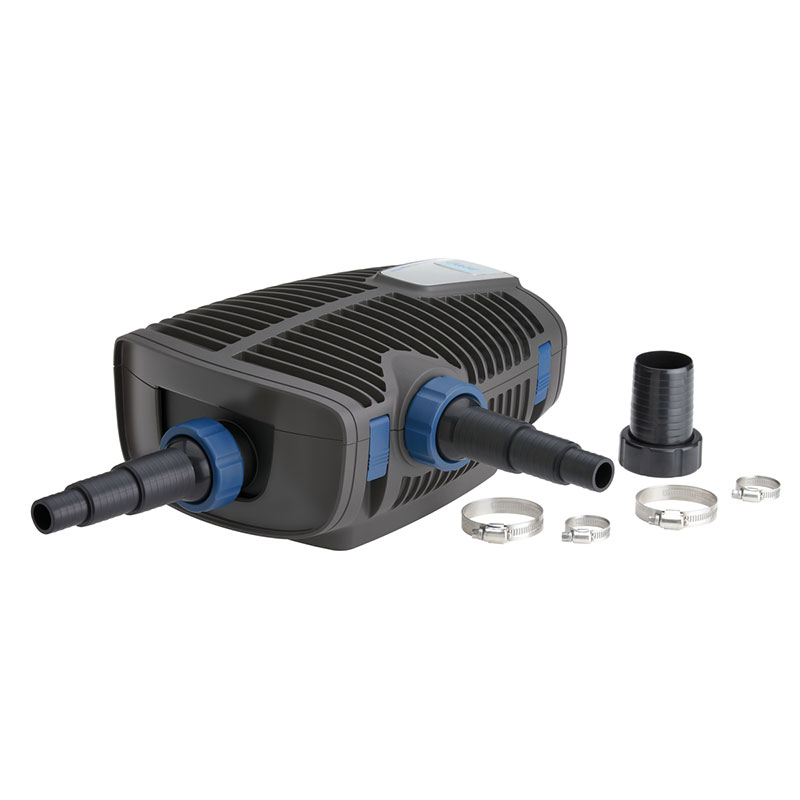

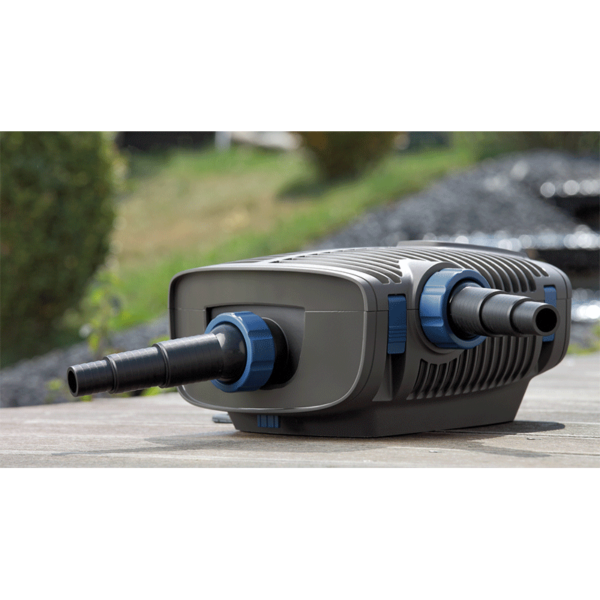

OASE AquaMax Eco Premium 20000

Original price was: $2,052.25.Current price is: $1,865.70.

Key Features

  • Outstanding energy efficiency and displacement capacity
  • Simultaneous supply of debris through connection of filter accessories on the patented, second inlet
  • Patented frost protection to –20° C

Characteristic

  • Outstanding energy balance: reliable displacement using even less energy
  • Supplementary, patented connection of optional filter accessories for debris supply from more distant pond zones
  • Unique, patented frost protection: the pump will not be damaged at temperatures down to as low as -20° C
  • Elegant design with clever operating elements
  • Quiet for dry setup on swim ponds and bathing ponds
  • Environmental Function Control« (EFC by OASE) protects against dry run and blocking
  • MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level
  • Displace plant remains or fish waste up to 11 mm in size
  • Output can be adjusted electronically using the optional accessory InScenio FM-ProfiMaster
SKU: AQ-02OD010 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 340 x 280 x 165
Rated voltage 220 – 240 V / 50/60 Hz
Power consumption W 15 – 180
Power cable length m 10.00
Net weight kg 5.70
Guarantee (+ request guarantee) Years 3 + 2
Max. flow rate l/min 325
Max. flow rate l/h 19500
Max. head height, metres m 5.40
Pressure-side connection mm 50
Pressure-side connection 2″
Suction-side connection mm 50
Suction-side connection 2″
Hose connection mm 25 / 32 / 38 / 50
Hose connection 1″, 1 ¼”, 1 ½”, 2″
Filter intake surface cm² 1000
Max. coarse debris displacement mm 11
Electronic adjustment Yes
Setup type Can be set up underwater & dry installed
Pos. Product SKU Quantity
1 Spare filter housing top AquaMax Eco Pr. 17963 1
2 Clamp EC2 16982 1
3 Rubber part AquaMax Pro 17232 1
4 Adapter 2″ 16859 1
5 Add. pack AquaMax Eco 2″ 17069 1
6 Add. pack AquaMax Eco 1″ – 1 1/2″ 17272 1
7 Pump holder EC2-XL 30231 1
8 Spare filter housing base AquaMaxEco Pr. 17962 1
9 Suction adapter AquaMax Pro 16867 1
10 Regulator AquaMax Pro 16866 1
11 Oval head screw CH-V2A DIN 7981 4.8×19 22853 4
12 Clip Bitron Eco / AquaMax 30983 1
13 Oval head screw V2A DIN 7985 5 x 22 6056 1
14 Adapter intermediate housing EC 2 30218 1
15 ASM slider EC2 35763 1
16 Flat gasket 107 x 78 x 2.5 USP 16 light 17513 1
17 Spare rotor AquaMax Eco Premium 20000 30538 1
18 Intermediate housing EC 2 30217 1
19 O-Ring NBR 125 x 3.5 SH70 15574 1
20 ASM Pumphousing AquaMax Eco Prem. 20000 30235 1
