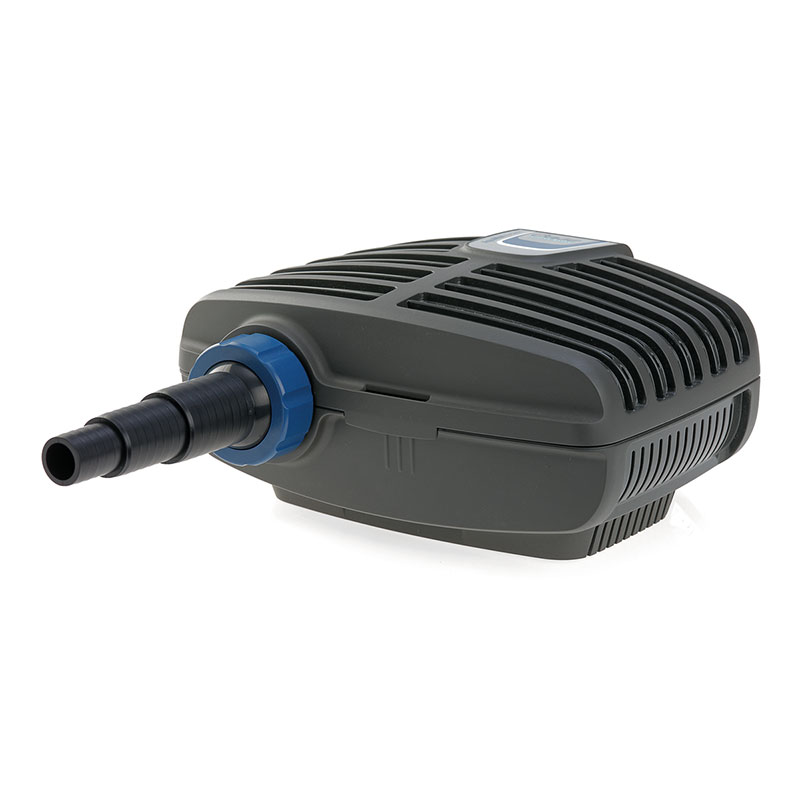

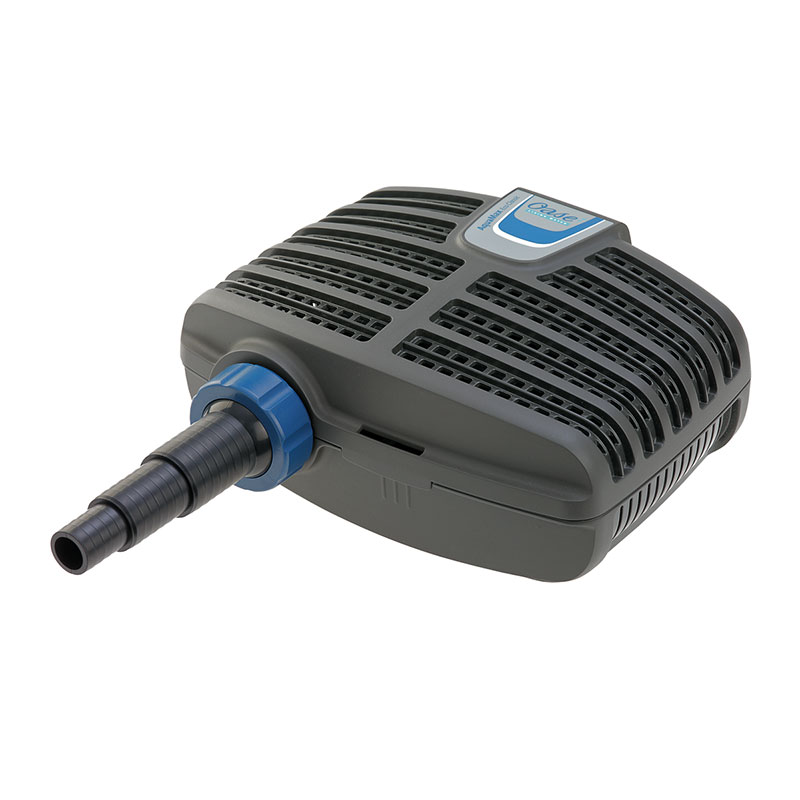

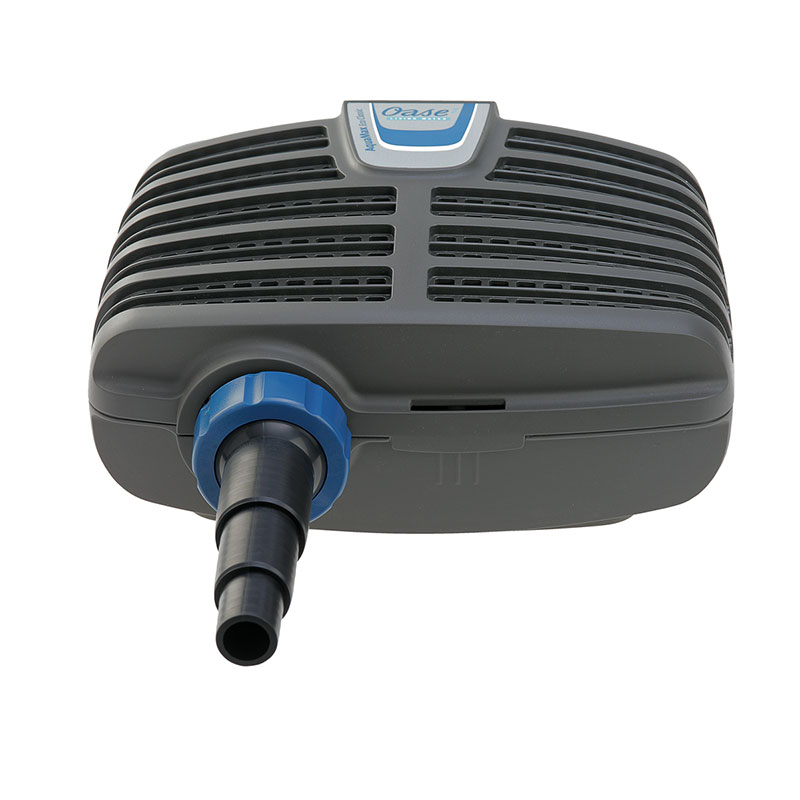

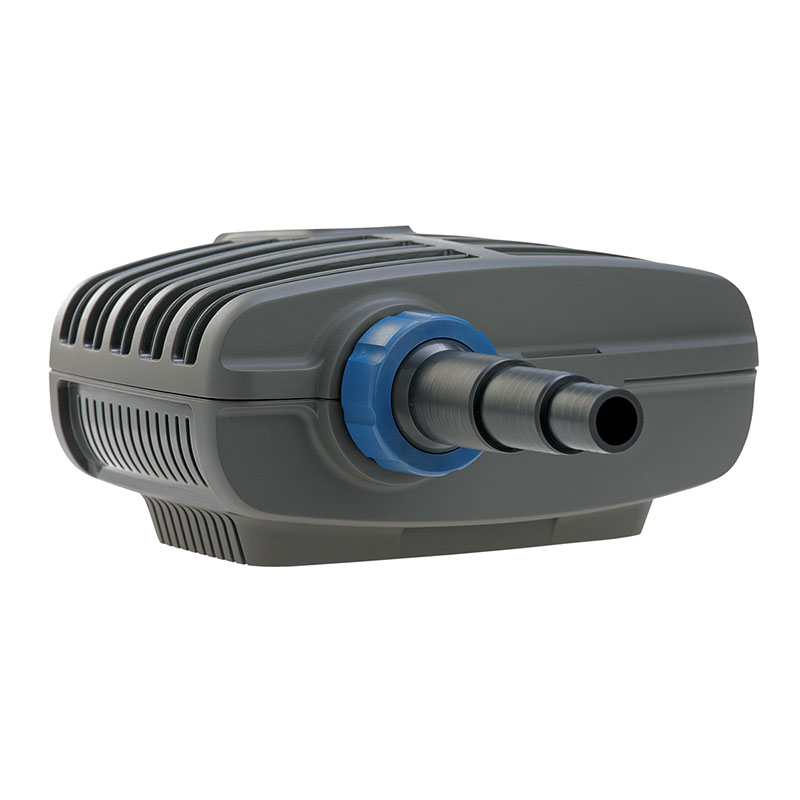

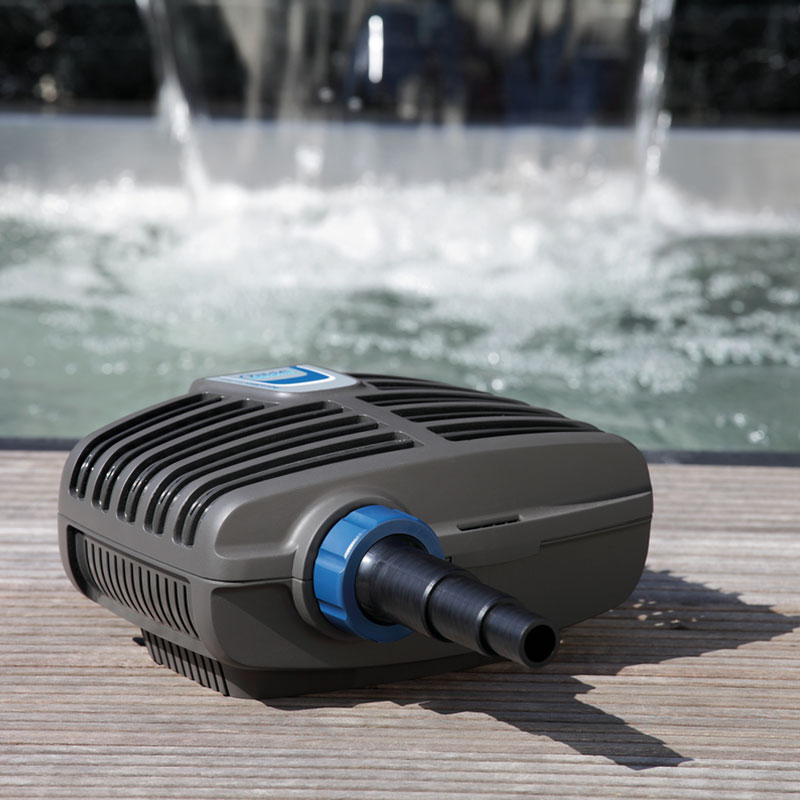

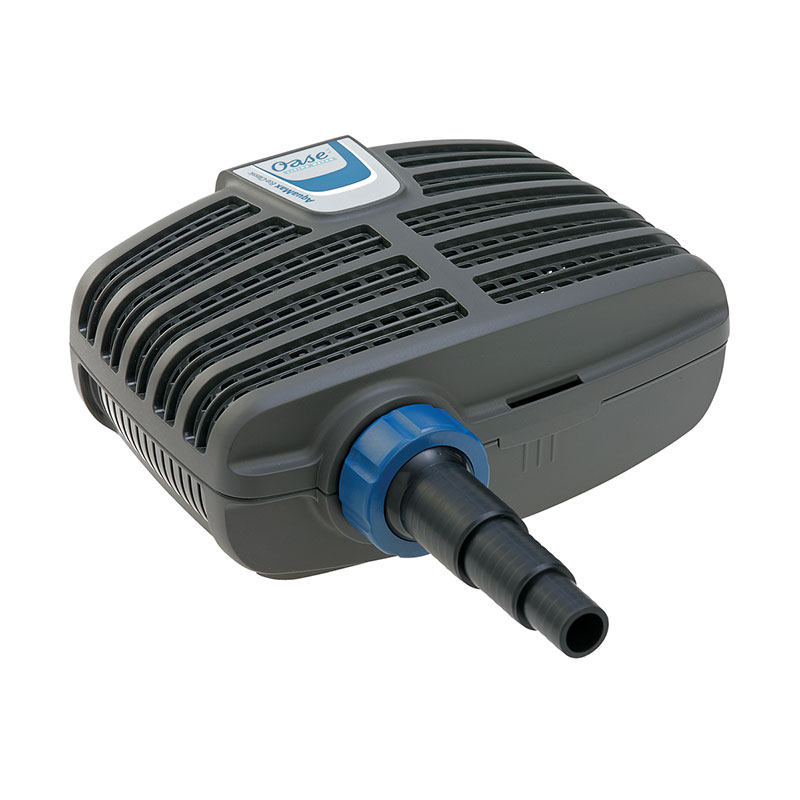

OASE AquaMax Eco Classic 11500

Original price was: $934.40.Current price is: $849.45.

Key Features

  • Top entry-level model in a new design with a first class price-performance ratio
  • Thanks to the energy efficient motor, the AquaMax Eco Classic constantly saves power – and money
  • Can cope with coarse debris particles up to 8 mm in size

Characteristic

  • The completely redesigned classic – the entry level series of filter and watercourse pumps from OASE
  • Extremely economical: Thanks to its energy-efficient motor, the AquaMax Eco Classic constantly saves electricity—and therefore money—while in operation
  • Suitable for use on swim ponds and bathing ponds (used in an exterior pump chamber)
  • Environmental Function Control (EFC by OASE) protects against dry running and blocking
  • Uncompromisingly reliable, with high cleaning force, it pumps pond water and coarse debris particles, up to 8 mm in size, into a filter.
SKU: AQ-02OD005 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 280 x 230 x 140
Rated voltage 220 – 240 V / 50 Hz
Power consumption W 100
Power cable length m 10.00
Net weight kg 5.00
Guarantee (+ request guarantee) Years 3 + 2
Max. flow rate l/min 183
Max. flow rate l/h 11000
Max. head height, metres m 3.30
Pressure-side connection mm 50
Pressure-side connection 2″
Suction-side connection mm 38
Suction-side connection 1 ½”
Hose connection mm 25 / 32 / 38
Hose connection 1″, 1 ¼”, 1 ½”
Filter intake surface cm² 810
Max. coarse debris displacement mm 8
Electronic adjustment No
Setup type Can be set up underwater & dry installed
Pos. Product SKU Quantity
1 Connection kit AquaMax Eco Cl.3500-17500 21904 1
2 Rubber buffer AquaMax Eco Cl.11500/14500 21907 1
3 Filter housing AquaMax Eco Cl.3500-14500 21902 1
4 Pump housing AquaMax Eco Cl. 11500/14500 21914 1
5 Spare rotor AquaMax Eco Classic 11500 21900 1
