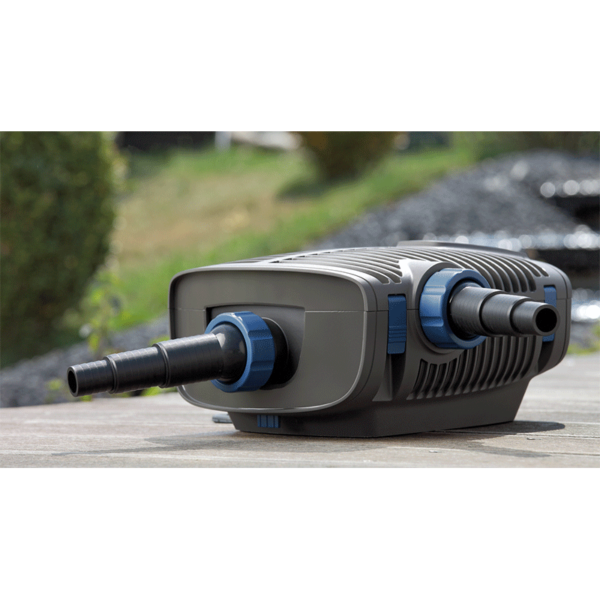

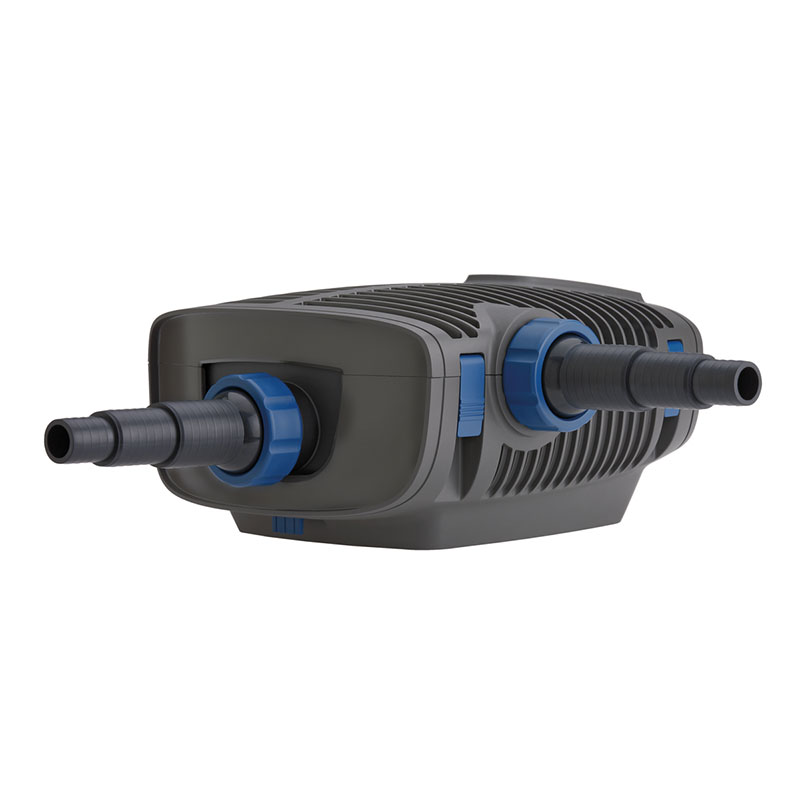

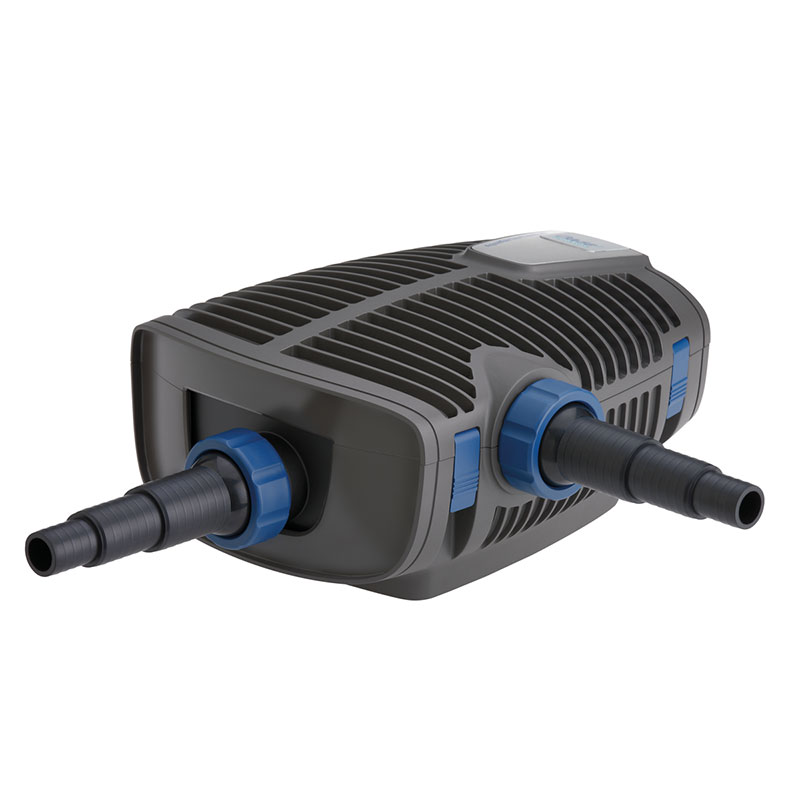

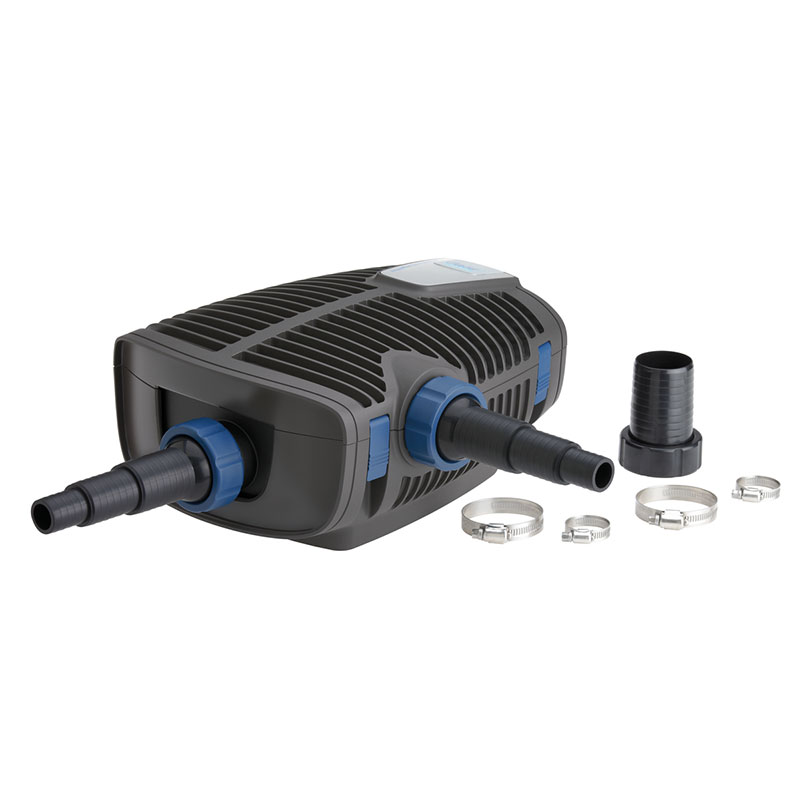

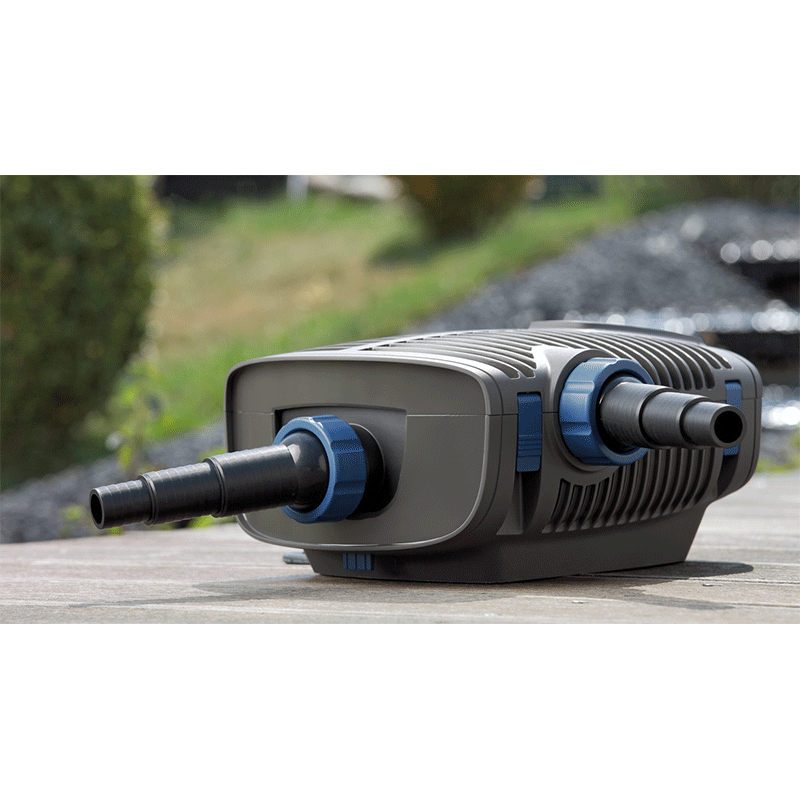

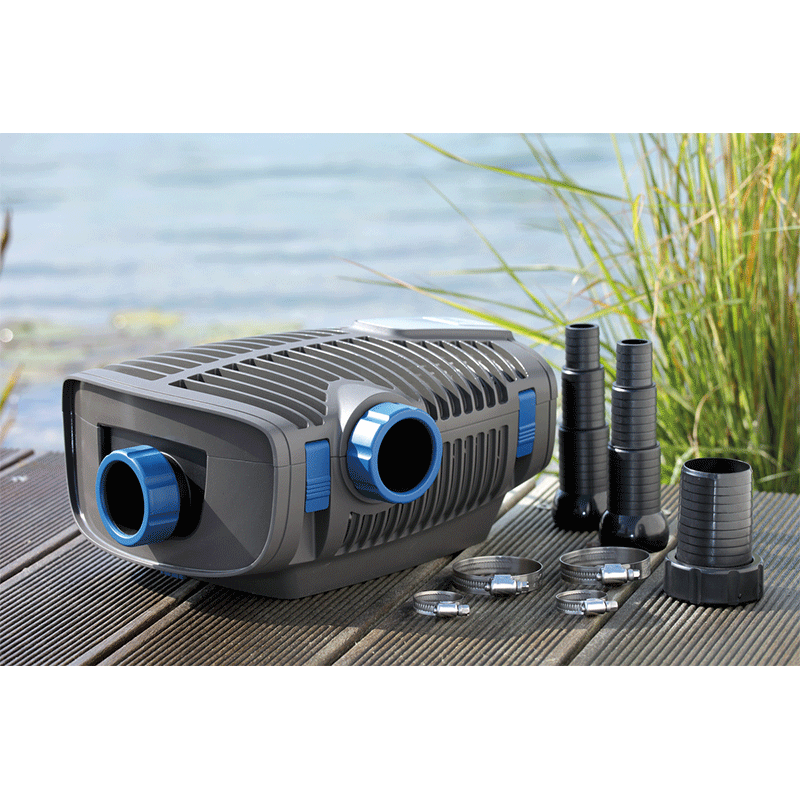

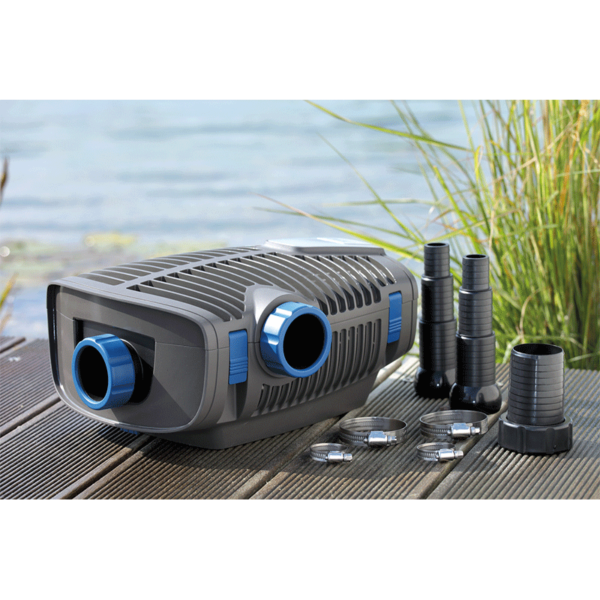

OASE AquaMax Eco Premium 16000

$1,735.15

Key Features

  • Outstanding energy efficiency and displacement capacity
  • Simultaneous supply of debris through connection of filter accessories on the patented, second inlet
  • Patented frost protection to –20° C

Characteristic

  • Outstanding energy balance: reliable displacement using even less energy
  • Supplementary, patented connection of optional filter accessories for debris supply from more distant pond zones
  • Unique, patented frost protection: the pump will not be damaged at temperatures down to as low as -20° C
  • Elegant design with clever operating elements
  • Quiet for dry setup on swim ponds and bathing ponds
  • »Environmental Function Control« (EFC by OASE) protects against dry run and blocking
  • MADE IN GERMANY: precise and reliable German engineering skills at a particularly high quality level
  • Displace plant remains or fish waste up to 11 mm in size
  • Output can be adjusted electronically using the optional accessories InScenio Dimmer or FM-Master 3/FM-ProfiMaster
SKU: AQ-02OD008 Category:
Download Instructions

TECHNICAL DATA

Dimensions (L x W x H) mm 340 x 280 x 165
Rated voltage 220 – 240 V / 50/60 Hz
Power consumption W 11 – 145
Power cable length m 10.00
Net weight kg 5.40
Guarantee (+ request guarantee) Years 3 + 2
Max. flow rate l/min 260
Max. flow rate l/h 15600
Max. head height, metres m 5.20
Pressure-side connection mm 50
Pressure-side connection 2″
Suction-side connection mm 50
Suction-side connection 2″
Hose connection mm 25 / 32 / 38 / 50
Hose connection 1″, 1 ¼”, 1 ½”, 2″
Filter intake surface cm² 1000
Max. coarse debris displacement mm 11
Electronic adjustment Yes
Setup type Can be set up underwater & dry installed
Pos. Product SKU Quantity
1 Spare filter housing top AquaMax Eco Pr. 17963 1
2 Clamp EC2 16982 1
3 Rubber part AquaMax Pro 17232 1
4 Adapter 2″ 16859 1
5 Add. pack AquaMax Eco 2″ 17069 1
6 Add. pack AquaMax Eco 1″ – 1 1/2″ 17272 1
7 Pump holder EC2 AquaMax Pro 16956 1
8 Spare filter housing base AquaMaxEco Pr. 17962 1
9 Suction adapter AquaMax Pro 16867 1
10 Regulator AquaMax Pro 16866 1
11 Oval head screw CH-V2A DIN 7981 4.8×19 22853 4
12 Clip Bitron Eco / AquaMax 30983 1
13 Oval head screw V2A DIN 7985 M5 x 20 H 6055 1
14 ASM slider EC2 35763 1
15 Spare rotor AquaMax Eco Pre. 12000-16000 17965 1
16 Spare pump housing AquaMax Eco Pr. 16000 17970 1
17 Flat gasket 107 x 78 x 2.5 USP 16 light 17513 1
